Two-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Gray MPN:YA4CL2TC14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4654386

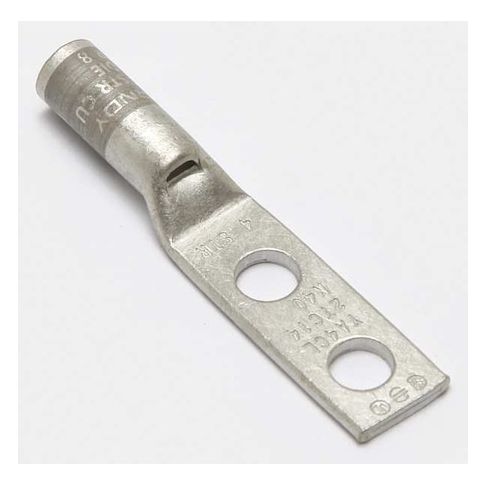

Two-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Gray
The Two-Hole Compression Lug is a reliable and efficient connector for stranded copper wire applications. Ideal for use in high-voltage electrical systems, this lug can withstand 35kV AC and temperatures up to 194°F. With a maximum wire size of 4 AWG, it's perfect for a variety of applications, including industrial control systems, power distribution, and electrical panel installations. The lug's copper construction ensures excellent conductivity and durability. CSA certified and UL listed, this connector meets rigorous safety standards, providing peace of mind for electrical engineers and technicians. Its compact design and easy crimp termination make it a convenient choice for a wide range of electrical projects.
Top product features:
- Two-Hole Lug Compression Connector provides a crimp termination style for secure connections.
- The product is designed for use with stranded copper wire, accommodating a minimum of 4 AWG and a maximum of 4 AWG.
- The lug features an inspection hole for easy visual inspection of the wire connection.
Top product applications:
- Power Distribution Systems
- Electrical Panel Connections
- Switchgear and Circuit Breaker Installations
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 0.50
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on February 28, 2026 6:50am UTC
Category: Electrical Connectors
