Two-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Aluminum, Ruby MPN:YA27A5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4653652

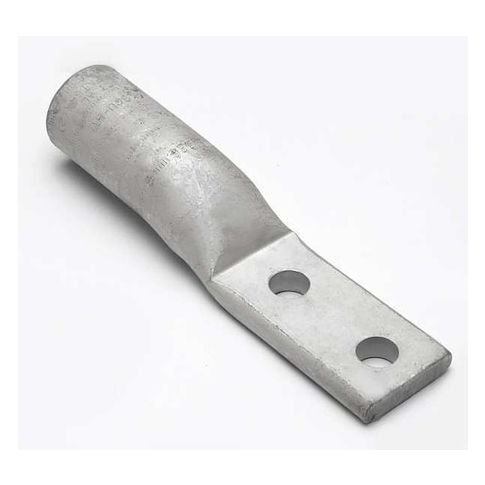

Two-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Aluminum, Ruby
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting aluminum or copper conductors to 1/2 inch studs. Its standard barrel design and ruby color code ensure easy identification and compatibility with a wide range of applications. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV AC, this lug is suitable for use in high-performance electrical systems. Ideal for use in industrial, commercial, and residential settings, the Two-Hole Compression Lug is a versatile and dependable choice for electrical contractors and engineers. Its compact design and easy installation make it a convenient solution for a variety of applications.
Top product features:
- Two-Hole Lug Compression Connector for Aluminum and Copper conductors
- Termination Style: Crimp
- Straight Tongue Angle for secure connections
Top product applications:
- Bus Electrical Systems
- Power Distribution Panels
- Power Generation and Transmission
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Ruby, Die Code 467, Tongue Angle Straight, Tongue Width 1.04 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on January 28, 2026 4:21pm UTC
Category: Electrical Connectors
