Two-Hole Compression Lug, 6 AWG Max, #10 Stud, Standard Barrel, Copper, Blue MPN:YA6CL2TC10
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4652602

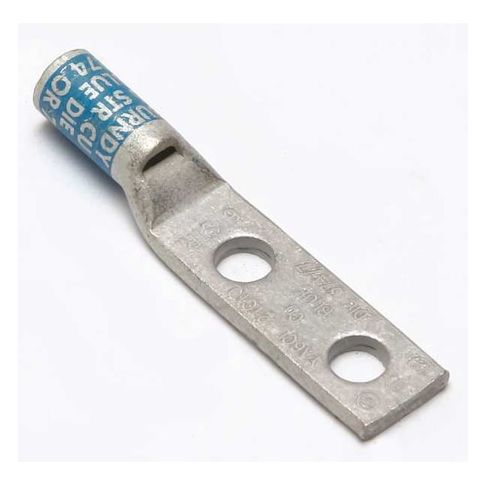

Two-Hole Compression Lug, 6 AWG Max, #10 Stud, Standard Barrel, Copper, Blue
The Burndy Two-Hole Compression Lug is a reliable and efficient connector for copper stranded wire applications. Designed for use with #10 studs and 6 AWG wire, this lug features a standard barrel and straight tongue angle for secure crimping. Its copper construction and CSA certification ensure high-quality performance in demanding environments. Suitable for a range of applications, including electrical and industrial systems, this lug offers a maximum operating temperature of 194°F and a maximum voltage of 35 kV AC. Its compact size and ease of installation make it an ideal choice for professionals and DIY enthusiasts alike.
Top product features:
- Two-Hole Lug Compression Connector provides a secure crimp termination style for stranded copper wire.
- The connector has a straight tongue angle and a tongue width of 0.42 in, allowing for easy connection and disconnection of conductors.
- The connector has an inspection hole, making it easier to verify the connection status.
Top product applications:
- Power distribution systems
- Electrical panel boards
- Generator connections
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.42 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.40
- Package Height: 0.20
- Package Weight: 0.00
Product info last updated on February 14, 2026 6:55pm UTC
Category: Electrical Connectors
