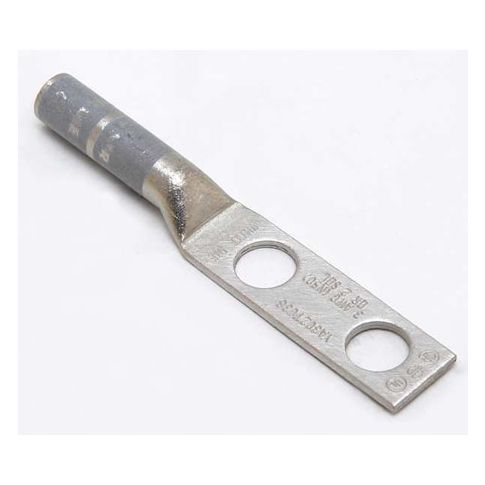

Two-Hole Compression Lug, 3 AWG Max, 3/8 in Stud, Long Barrel, Copper, White MPN:YA3C2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4652392
Two-Hole Compression Lug, 3 AWG Max, 3/8 in Stud, Long Barrel, Copper, White
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. Designed for use in a variety of applications, including electrical panels, motor control centers, and power distribution systems, this lug features a long barrel and straight tongue angle for easy crimping. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, it provides a secure connection in high-performance environments. CSA certified and UL listed, this lug meets industry standards for safety and reliability, making it an ideal choice for demanding electrical systems.
Top product features:
- Two-Hole Compression Lug has a long barrel design.
- The product is suitable for crimping stranded copper wire sizes up to 3 AWG.
- The lug has a straight tongue angle.
Top product applications:
- Electrical panel construction
- Automotive wiring harness assembly
- High-voltage electrical distribution systems
Compression Lug, Barrel Size Long, Color Code White, Die Code 9, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 3 AWG, For Stranded Copper Wire Size - Maximum 3 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 0.70
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on February 12, 2026 4:38pm UTC
Category: Electrical Connectors
