Two-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown MPN:YA2CL2TC14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4652015

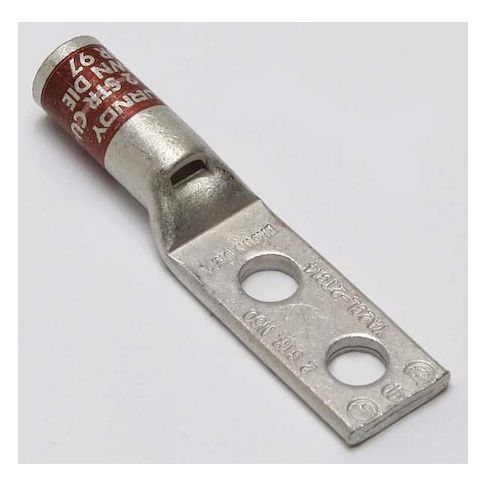

Two-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. Designed for use with stranded copper wire up to 2 AWG, this lug features a standard barrel size and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and voltage rating of 35 kV, it's suitable for a wide range of applications, including industrial control systems and electrical distribution networks. CSA certified and UL listed, this lug provides a high level of safety and reliability. Its compact design and easy installation make it an ideal choice for various industries.
Top product features:
- Two-Hole Compression Lug accommodates stranded copper wire sizes up to 2 AWG.
- Copper material provides high electrical conductivity and durability.
- Straight tongue angle facilitates easy installation and secure connection.
Top product applications:
- Bus Bar Connectors
- Electrical Panel Connectors
- Power Distribution Connectors
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.01
Product info last updated on February 3, 2026 10:04am UTC
Category: Electrical Connectors
