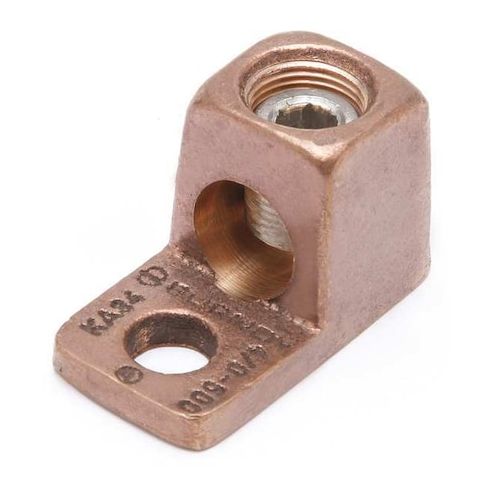

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper MPN:KA28
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4651972
Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for copper stranded wire applications. Suitable for use with wire sizes from 1 AWG to 4/0 AWG, this lug provides a secure and durable connection for a wide range of electrical systems. Its copper construction and hex socket head design ensure easy installation and maximum conductivity. The lug is ideal for use in applications such as electrical panels, switchgear, and motor control systems, where high performance and reliability are critical. With its compact size and low weight, the Burndy Mechanical Lug is a versatile and convenient solution for electrical engineers and technicians.
Top product features:
- Connects stranded copper wire up to 4/0 AWG to a 3/8 in stud
- Provides a hex socket head style for easy installation and removal
- Withstands operating temperatures up to 194 degrees F and voltages up to 600 V
Top product applications:
- Electrical Wiring: The mechanical lug is used to connect and secure copper stranded wires to a 3/8 inch stud in electrical wiring applications.
- Automotive Wiring: The product is suitable for use in automotive wiring systems, where it can be used to connect and secure copper stranded wires to a 3/8 inch stud.
- Industrial Electrical Systems: The mechanical lug is used in industrial electrical systems to connect and secure copper stranded wires to a 3/8 inch stud, providing a reliable and secure connection in high-temperature applications.
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 3/8 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.42 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.94 in, Tongue Thickness 0.19 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on February 25, 2026 6:24pm UTC
Category: Electrical Connectors
