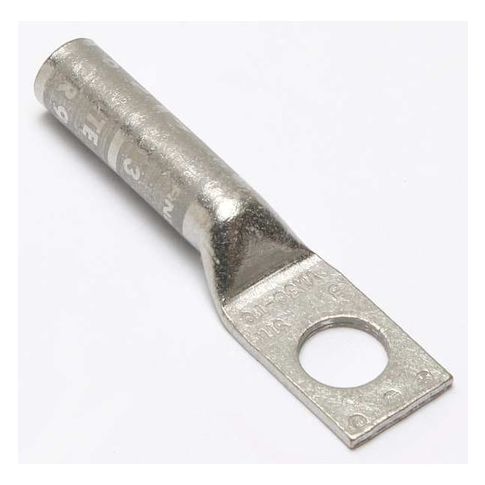

One-Hole Compression Lug, 3 AWG Max, 3/8 in Stud, Long Barrel, Copper, White MPN:YA3CTC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4651963
One-Hole Compression Lug, 3 AWG Max, 3/8 in Stud, Long Barrel, Copper, White
The Burndy One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors to 3/8 inch studs. Its long barrel design provides a secure crimp, while the straight tongue angle ensures easy installation. Suitable for use in a variety of applications, including electrical panels, switchgear, and motor control centers, this lug is certified to CSA and UL standards for up to 35 kV and 194°F operating temperatures. Its compact size and lightweight design make it ideal for use in tight spaces, reducing installation time and increasing productivity.
Top product features:
- Termination style is crimp, allowing for secure and reliable connections.
- The product has a long barrel, providing extra space for conductor wire.
- It can handle stranded copper wire up to 3 AWG, accommodating a range of conductor sizes.
Top product applications:
- Industrial electrical panel construction
- Electrical distribution systems
- Low-voltage motor control
Compression Lug, Barrel Size Long, Color Code White, Die Code 9, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 3 AWG, For Stranded Copper Wire Size - Maximum 3 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.70
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on February 3, 2026 2:57pm UTC
Category: Electrical Connectors
