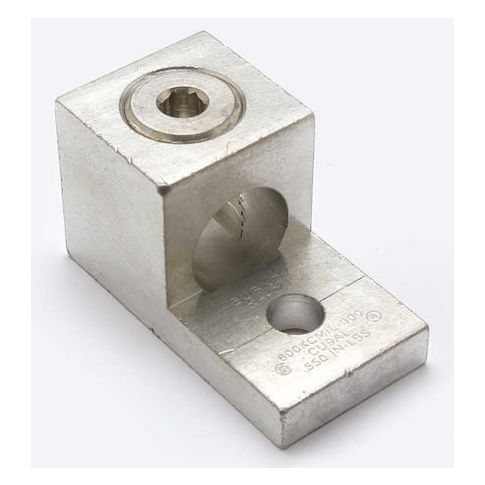

Mechanical Lug, 800 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Aluminum MPN:KA40U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4651577
Mechanical Lug, 800 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient solution for connecting aluminum or copper conductors. Suitable for stranded copper wire sizes from 300 to 800 kcmil, this lug features a sturdy 1/2 in aluminum stud and a hex socket head for easy installation. Its compact design and durable construction make it ideal for a variety of applications, including electrical distribution systems, industrial power supplies, and renewable energy installations. With a maximum operating temperature of 194°F and a maximum voltage rating of 600V, this lug provides a safe and secure connection for demanding electrical systems.
Top product features:
- Connects stranded copper wire up to 800 kcmil in size
- Accepts aluminum conductor material
- Operates at a maximum voltage of 600 V
Top product applications:
- Outdoor Electrical Distribution Systems
- Substation Electrical Connections
- High-Voltage Transmission Line Connections
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 800 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.66 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.85 in, Tongue Width 1.77 in, Tongue Thickness 0.5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.90
- Package Height: 2.00
- Package Weight: 0.55
Product info last updated on February 2, 2026 8:01am UTC
Category: Electrical Connectors
