One-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, Brown MPN:YA2CN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4650834

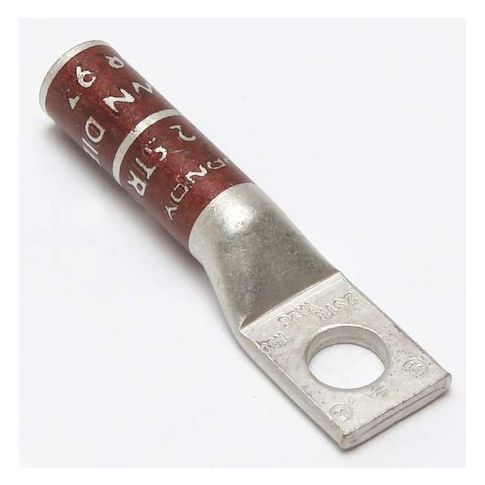

One-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, Brown
The Burndy One-Hole Compression Lug is a reliable and efficient solution for electrical connections. Designed for use with stranded copper wire up to 2 AWG, this lug features a long barrel and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and a voltage rating of 35kV, it meets the standards for CSA certification and UL 486A-486B. Suitable for a variety of applications, including residential and commercial electrical installations, this lug provides a secure and reliable connection. Its compact size and ease of use make it an ideal choice for electricians and contractors.
Top product features:
- Copper construction provides high electrical conductivity
- Termination style crimp provides secure and reliable connections
- Maximum operating temperature of 194 degrees F allows for use in high-temperature applications
Top product applications:
- Bus Bar Connections
- Electrical Panel Connections
- Circuit Breaker Connections
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.00
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 11, 2026 11:59pm UTC
Category: Electrical Connectors
