Two-Hole Compression Lug, 750 kcmil Max, 3/8 in Stud, Standard Barrel, Copper, Yellow MPN:YA44L2NT38FX
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G4650265

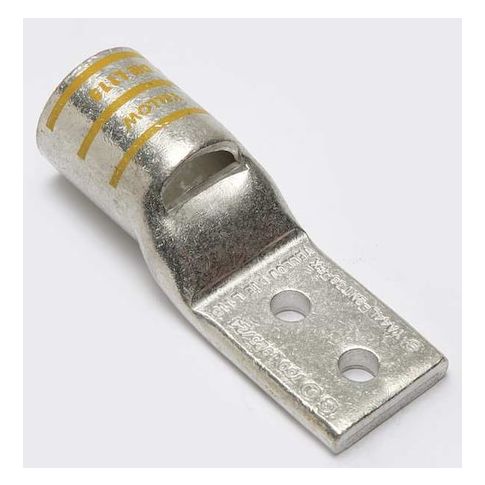

Two-Hole Compression Lug, 750 kcmil Max, 3/8 in Stud, Standard Barrel, Copper, Yellow
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper conductors up to 777 kcmil. Its standard barrel design and straight tongue angle ensure a secure crimp connection. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, this lug is suitable for a wide range of applications, including power distribution and transmission systems. Its CSA certification and UL listing provide assurance of compliance with industry standards. Ideal for use in electrical substations, power plants, and other critical infrastructure, this lug offers a durable and long-lasting connection solution.
Top product features:
- Two-Hole Compression Lug provides a secure crimp termination for stranded copper wire sizes up to 777 kcmil.
- The lug has a standard barrel size to accommodate a wide range of conductor sizes.
- The lug has a straight tongue angle and a tongue width of 1.63 in to provide a secure grip on the conductor.
Top product applications:
- Industrial Electrical Panel Wiring
- Transmission Line Connectors
- High Voltage Power Distribution Systems
Compression Lug, Barrel Size Standard, Color Code Yellow, Die Code L115, Tongue Angle Straight, Tongue Width 1.63 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 777 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 1.60
- Package Height: 1.50
- Package Weight: 0.90
Product info last updated on February 2, 2026 10:42am UTC
Category: Electrical Connectors
