Two-Hole Compression Lug, 6 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Blue MPN:YA6CL2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4649522

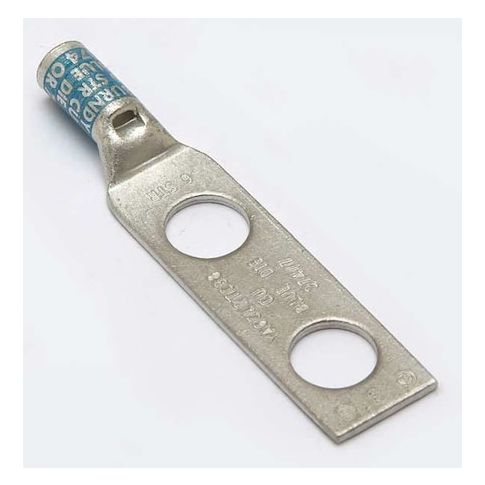

Two-Hole Compression Lug, 6 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Blue
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors in a variety of applications. With a maximum operating temperature of 194°F and a maximum voltage of 35kV AC, this lug is suitable for use in high-voltage electrical systems. Its standard barrel design and copper construction ensure a secure and durable connection. The lug's two-hole design allows for easy installation and inspection, making it ideal for use in commercial and industrial settings, such as power generation and distribution systems, and in applications where a high level of electrical safety is required.
Top product features:
- Two-Hole Lug Compression Connector has a standard barrel size.
- The connector is designed for crimp termination.
- The connector has an inspection hole for easy wire inspection.
Top product applications:
- Bus Bar Connections
- Copper Wire Harnesses
- Generator Connection
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 0.60
- Package Height: 0.50
- Package Weight: 0.01
Product info last updated on February 19, 2026 9:18am UTC
Category: Electrical Connectors
