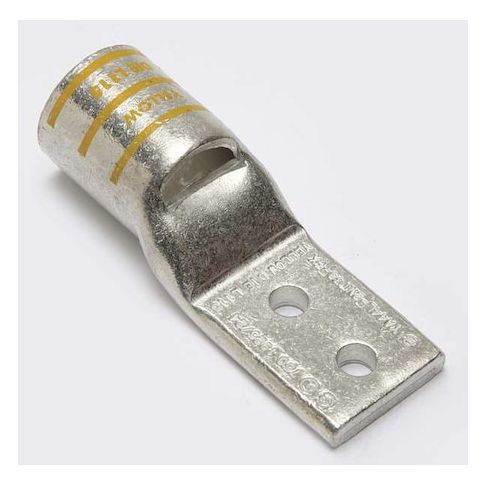

Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow MPN:YA44L2NNTFX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4649276
Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting stranded copper wire up to 777 kcmil. Its standard barrel and straight tongue design provide a secure and consistent crimp, while the copper material ensures excellent conductivity and durability. Suitable for a wide range of applications, including electrical distribution systems and heavy industrial settings, this lug offers a maximum operating temperature of 194°F and a maximum voltage rating of 35 kV AC. Its compact design and easy installation make it an ideal choice for use in high-voltage systems, power plants, and other critical infrastructure.
Top product features:
- Two-Hole Lug Compression Connector, Barrel Size Standard
- Compression Lug design for secure termination of stranded copper wire
- Crimp termination style for reliable electrical connection
Top product applications:
- Busbar Connectors
- Power Distribution Systems
- Electrical Panel Connections
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Yellow, Die Code L115, Tongue Angle Straight, Tongue Width 1.63 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 777 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 1.05
Product info last updated on February 16, 2026 11:38am UTC
Category: Electrical Connectors
