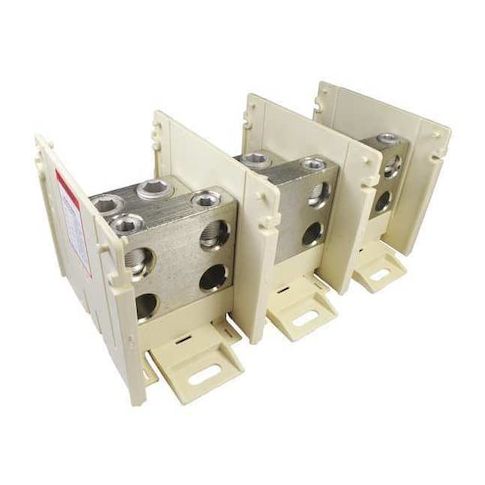

Power Distribution Block, Open, 3 Pole, 760 A Copper, 600 V AC/DC MPN:BDBLCS6R3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3111635
Power Distribution Block, Open, 3 Pole, 760 A Copper, 600 V AC/DC
The Burndy Power Distribution Block is a reliable and efficient solution for managing power distribution in various applications. With a maximum current rating of 760 A and a maximum voltage of 600 V AC/DC, it can handle demanding power requirements. Suitable for use with copper and aluminum conductors, this block features two line connections and four load connections, making it ideal for use in industrial, commercial, and residential settings. Its compact design and DIN-rail mounting option make it easy to integrate into existing systems, providing a safe and reliable power distribution solution for a wide range of applications.
Top product features:
- Distributes power to multiple loads through 4 load connections
- Supports copper conductors with a maximum current rating of 760 A
- Mounts on DIN-rail or surface for flexible installation options
Top product applications:
- Main Bus Bar in Power Distribution Systems
- Motor Control Centers
- Switchgear and Panelboards
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 4/0 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type DIN-Rail, Surface, Number of Poles 3
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.70
- Package Width: 6.20
- Package Height: 4.50
- Package Weight: 4.26
Product info last updated on March 10, 2026 4:17pm UTC
Category: Electrical Connectors
