Thrust Washer, 0.500" I.D., 1.000" O.D. MPN:EBTW081602
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5908476

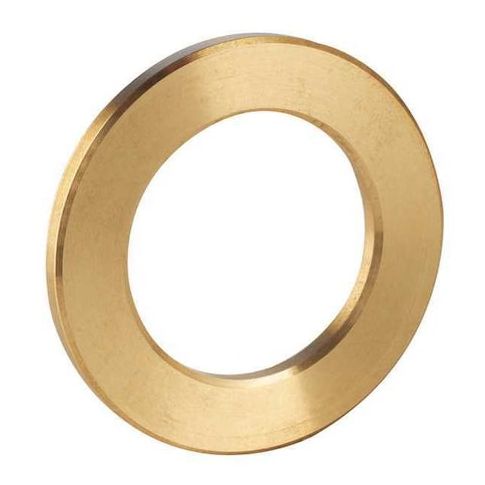

Thrust Washer, 0.500" I.D., 1.000" O.D.
This high-quality Thrust Washer is designed for heavy-duty applications, featuring a lead-free cast bronze construction and a lubricant material that provides optimal performance. With a maximum temperature rating of 400°F and a minimum temperature rating of -40°F, it can withstand a wide range of operating conditions. The Thrust Washer is ideal for use in industrial equipment, machinery, and automotive applications, providing a smooth and quiet operation. Its corrosion-resistant properties and RoHS certification make it a reliable choice for industries requiring a high level of quality and sustainability.
Top product features:
- Lead-Free Cast Bronze construction provides corrosion resistance
- SAE 50 Oil lubricant is applied for reduced friction and wear
- Bronze material is suitable for high-temperature applications up to 400 Degrees F
Top product applications:
- Thrust washer applications include:
- Bearings in gearboxes and motors
- Pumps and compressors
Thrust Washer, Bore Diameter 1/2 in, Bronze Material Type Lead-Free Cast Bronze, Lubricant Material SAE 50 Oil, Material Group Metallic, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Outside Diameter 1 in, Plain Bearing Material Bronze, System of Measurement Inch, Washer Thickness 0.125 in, Material Grade C87850, Maximum PV 100,000 lb/sq in-fpm, Resistance Properties Corrosion Resistant, Standards ASTM B505, Lead-Free, RoHS Certified, Thickness Tolerance +/-0.005 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.20
- Package Weight: 0.02
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on March 1, 2026 11:27pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
