Flanged Bearing, 1/4" I.D. x 3/8" L, PK5 MPN:BJ4F040603
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4669968

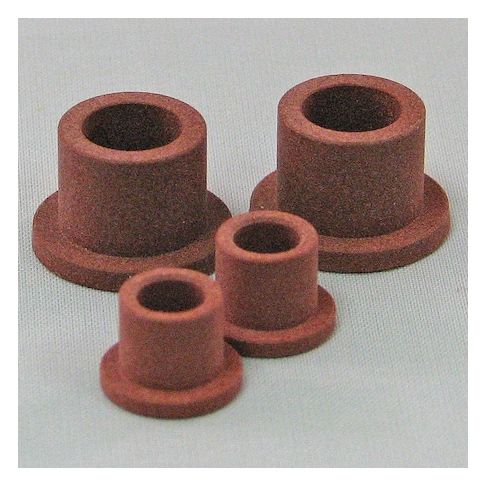

Flanged Bearing, 1/4" I.D. x 3/8" L, PK5
This compact flanged bearing is ideal for applications requiring high temperature resistance and smooth motion. With a bore diameter of 1/4 in and a flange diameter of 0.5 in, it can be used in a variety of industries including aerospace, automotive, and medical devices. The PTFE material provides low friction and wear resistance, while the bronze flange offers added strength and durability. Suitable for use in temperatures ranging from -250°F to 550°F, this bearing is perfect for applications where precision and reliability are crucial, such as in robotic joints, gearboxes, and other high-performance equipment.
Top product features:
- Flanged design provides a secure mounting option for the bearing.
- PTFE material offers high-temperature resistance up to 550°F.
- Bronze-free design eliminates the risk of bronze contamination.
Top product applications:
- Pneumatic cylinder bearing
- Linear motion bearing for robotic arms
- Precision instrument bearing
Flanged Sleeve Bearing, Bore Diameter 1/4 in, Bronze Material Type Not Applicable, Flange Diameter 0.5 in, Flange Type Flanged, Material Group Plastic, Maximum Temperature 550 Degrees F, Minimum Temperature -250 Degrees F, Outside Diameter 3/8 in, Overall Length 3/8 in, Plain Bearing Material PTFE, System of Measurement Inch, Color Red, Flange Thickness 0.062 in, Length Tolerance +/-0.005 in, Material Grade J-4200, Package Quantity 5
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 0.01
- Prop 65 Cancer Warning Chemical: Tetrafluoroethylene
Product info last updated on March 10, 2026 12:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
