Flanged Sleeve Bearing, 20 mm Bore, PK5 MPN:CFM020024016
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3976192

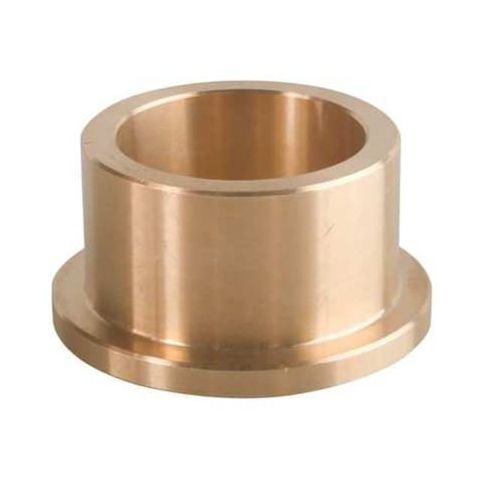

Flanged Sleeve Bearing, 20 mm Bore, PK5
This cast bronze sleeve bearing features a flanged design and a bore diameter of 20mm, making it suitable for a variety of applications including machinery, equipment, and automotive components. The bearing's high temperature range of -450 to 500 degrees F allows for use in demanding environments, while its bronze material provides excellent wear resistance and corrosion protection. The compact size and lightweight design make it ideal for use in space-constrained applications. This bearing is available in a package of five, with a lead time of seven days and a unit of measure in packages.
Top product features:
- Cast Bronze construction provides durability and resistance to corrosion.
- Flanged design allows for secure mounting and easy installation.
- Operating temperature range of -450°F to 500°F enables use in extreme environments.
Top product applications:
- High-temperature applications such as conveyor systems and industrial equipment
- Low-friction applications such as skateboards and rollerblades
- Heavy-duty machinery and equipment that require high load-carrying capacity
Flanged Sleeve Bearing, Bore Diameter 20 mm, Bronze Material Type Cast Bronze, Flange Diameter 28 mm, Flange Type Flanged, Material Group Metallic, Maximum Temperature 500 Degrees F, Minimum Temperature -450 Degrees F, Outside Diameter 24 mm, Overall Length 16 mm, Plain Bearing Material Bronze, System of Measurement Metric, Color Bronze, Flange Thickness 2 mm, Length Tolerance +/-0.12 mm, Material Grade C93200 (SAE 660), Package Quantity 5
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.50
- Package Width: 1.60
- Package Height: 1.40
- Package Weight: 0.25
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on April 22, 2026 10:06am UTC
Category: Bearings, V-belts and Power Transmission Equipment
