Flanged Sleeve Bearing, 12 mm Bore, PK5 MPN:CFM012018008
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3956601

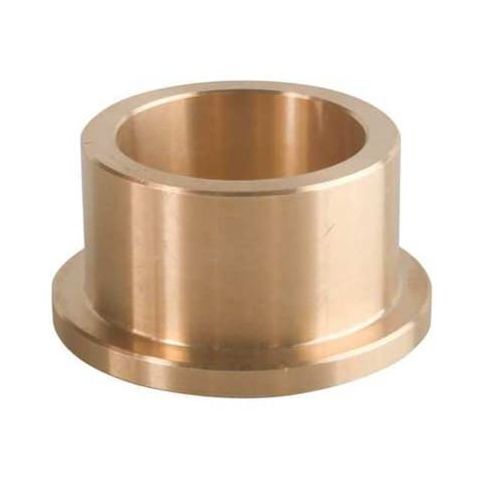

Flanged Sleeve Bearing, 12 mm Bore, PK5
This cast bronze flanged sleeve bearing is designed for high-temperature applications, with a maximum operating temperature of 500°F and a minimum temperature of -450°F. Its bronze material provides excellent wear resistance and corrosion protection, making it suitable for use in harsh industrial environments. The bearing's flanged design allows for easy mounting and alignment, while its compact size makes it ideal for use in tight spaces. Applications include machinery, equipment, and mechanical systems in industries such as aerospace, automotive, and manufacturing. With its durable construction and versatility, this bearing is a reliable choice for a wide range of applications.
Top product features:
- Cast Bronze material provides durability and resistance to corrosion.
- The flanged design allows for secure mounting and easy installation.
- Maximum operating temperature of 500 Degrees F and minimum operating temperature of -450 Degrees F enable use in a wide range of applications.
Top product applications:
- Pump shafts
- Conveyor belts
- Gearbox bearings
Flanged Sleeve Bearing, Bore Diameter 12 mm, Bronze Material Type Cast Bronze, Flange Diameter 24 mm, Flange Type Flanged, Material Group Metallic, Maximum Temperature 500 Degrees F, Minimum Temperature -450 Degrees F, Outside Diameter 18 mm, Overall Length 8 mm, Plain Bearing Material Bronze, System of Measurement Metric, Color Bronze, Flange Thickness 3 mm, Length Tolerance +/-0.12 mm, Material Grade C93200 (SAE 660), Package Quantity 5
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.50
- Package Width: 1.20
- Package Height: 0.50
- Package Weight: 0.15
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on April 29, 2026 6:14pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
