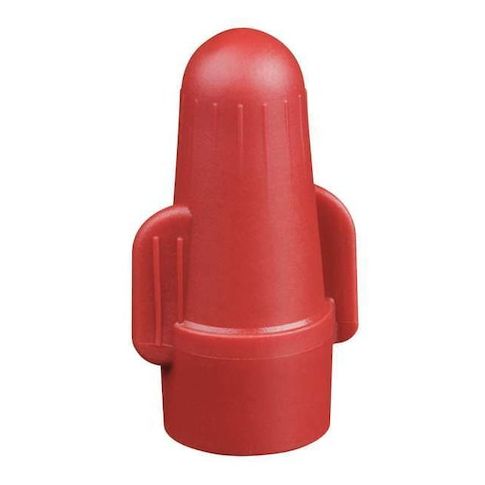

Twist-On Wire Connector, 8 AWG Max, Red, Polypropylene Insulation, 600 V, 100 PK MPN:BT2-1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3650455
Twist-On Wire Connector, 8 AWG Max, Red, Polypropylene Insulation, 600 V, 100 PK
Easily connect and secure your electrical wires with Buchanan's Twist-On Wire Connector. This reliable and durable connector is designed for use with copper conductors and features a maximum operating temperature of 221°F. Suitable for a wide range of applications, including residential, commercial, and industrial settings, this connector is certified to CSA and UL standards. Its polypropylene insulation and steel contact material ensure a secure and long-lasting connection. With a maximum voltage rating of 600V and a maximum conductor count of 6, this connector is perfect for applications where reliability and safety are paramount.
Top product features:
- Twist-on connection for easy wire attachment
- Accepts up to 6 conductors for multiple wire connections
- Polypropylene insulation for electrical isolation and safety
Top product applications:
- Electrical Panel Wiring
- Automotive Wiring Harness Assembly
- Marine Electrical System Installation
Twist On Wire Connector, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (2) 8 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Polypropylene, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 18 AWG, Overall Height 0.74 in, Overall Width 0.48 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 16.20
- Package Width: 7.70
- Package Height: 5.40
- Package Weight: 7.60
Product info last updated on February 7, 2026 3:47pm UTC
Category: Electrical Connectors
