2 Rotary Gear Pump Footmtg Worv- # MPN:713-2-1
2 Rotary Gear Pump Footmtg Worv- # MPN:713-2-1

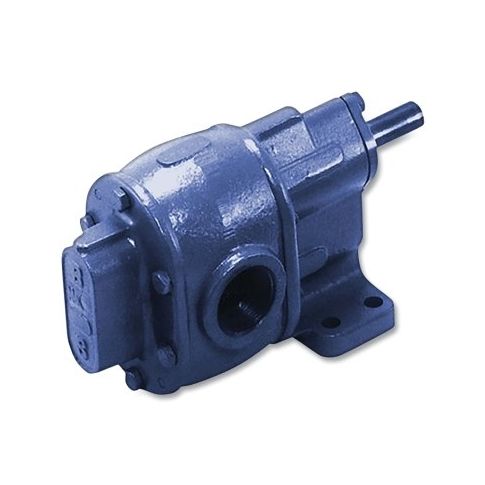

B-Series Pedestal Mount Gear Pump, 1/2 in, 9.4 GPM, 200 psi, No Valve, CW/CCW Rotation
Additional Information
- UPC Code: NULL
- Country of Origin: UNITED STATES
- Special Order Item: No
- State Restricted: NO
- Minimum Order Quantity: 1
- Minimum Order UOM: EA
- Cost UOM: EA
- UOM Conversion: 1 EA = 1 EA
- Item Weight: 10
- Item Length: 10.8
- Item Width: 5
- Item Height: 6
- Item Cube: 324
Attributes
- 0 PSI Flow/Power: 9.4 gal/min/0.11 hp
- 100 PSI Flow / Power: 9.1 gal/min / 0.85 hp
- 200 PSI Flow/Power: 8.9 gal/min/1.50 hp
- 50 PSI Flow/Power: 9.3 gal/min/0.48 hp
- Displacement: 0.0104 gal/rev
- Flow [Max]: 9.4 gal/min
- Gear Material: Steel
- Gear Type: Spur
- Housing Material: Iron
- Mounting: Pedestal
- Port Size: 1/2 in
- Pressure [Max]: 200 PSI
- Rotation: CW or CCW
- Shaft Diam: 0.63 in
- Shaft Height: 3 in
- Slip gpm/psi: 0.0023
- Speed [Max]: 900 RPM
- Type: Without Relief Valve
Features
- BSM 'B' and 'S' series pumps are a good choice for a variety of recirculating, mixing, transfer, hydraulic, and metering applications
- These pumps are available pedestal or flange mounted, with integral relief valve
- Constructed of cast iron, ductile iron, or bronze
- Seal options include compression packing, lip seal, and mechanical seal
- Standard pumps will operate at 200 psi and 250 F
Product info last updated on April 9, 2026 1:56am UTC
Category: PUMPING EQUIPMENT
