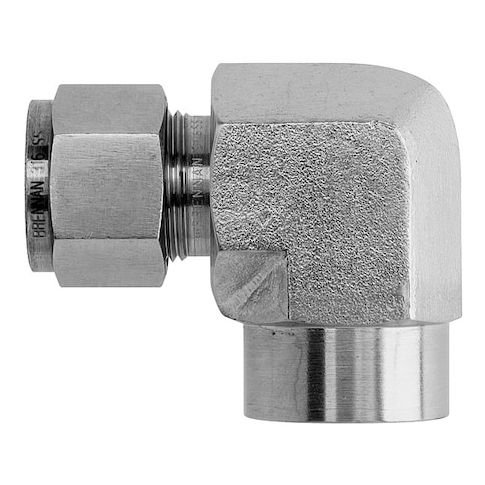

Elbow, SS, Comp. 5/16 in, FNPT 1/4 in MPN:N2502-05-02-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G506597681
Elbow, SS, Comp. 5/16 in, FNPT 1/4 in
This high-performance compression fitting elbow is designed for demanding applications in hydraulics and pneumatics, featuring a durable stainless steel construction with a 316 material grade. With a maximum operating pressure of 4037 psi and temperature of 1,200°F, it can withstand extreme conditions. The 5/16-inch tube outer diameter and 1/8-inch FNPT connection ensure seamless integration with various systems. Its compact 1 1/8-inch length and 90-degree bend make it ideal for tight spaces and complex piping configurations. Suitable for a wide range of industries, including manufacturing, oil and gas, and aerospace, this fitting provides reliable performance and long-lasting durability.
Top product features:
- Compression fitting for connecting stainless steel tubing to a 1/4 inch FNPT connection
- 90 degree elbow shape for changing direction of fluid flow
- Made from 316 stainless steel for high temperature and pressure resistance
Top product applications:
- Hydraulics
- Pneumatics
- Fitting Side A Connection Type Compression
Compression Fitting Elbow, Application Hydraulics, Pneumatics, Fitting Side A Connection Type Compression, Fitting Side B Connection Type FNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 5/16 in, Material Grade 316, Maximum Operating Pressure 4037 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 1/8 in, Specific Fitting Shape 90 Degrees Elbow, Fitting Side A Pipe Size Not Applicable, Fitting Side B Pipe Size 1/8 in
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.25
- Package Width: 11.50
- Package Height: 4.50
- Package Weight: 0.25
Product info last updated on March 17, 2026 5:44am UTC
Category: Pipes, Valves and Fittings
