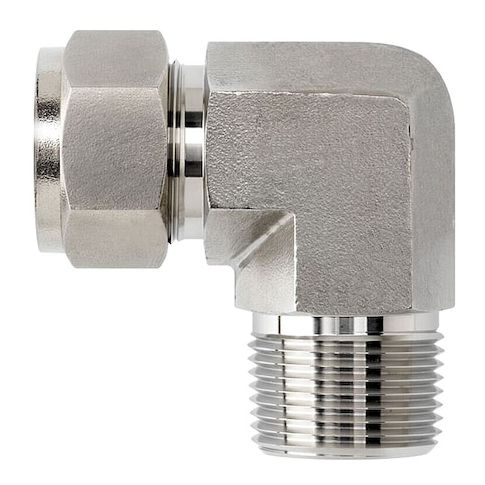

Elbow, SS, Comp. 3/16 in, MNPT 1/4 in MPN:N2501-03-02-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G106597654
Elbow, SS, Comp. 3/16 in, MNPT 1/4 in
This stainless steel compression fitting elbow is designed for high-pressure applications in hydraulics and pneumatics. With a 316-grade stainless steel construction, it can withstand extreme temperatures up to 1,200 degrees F and pressures of up to 5,474 psi. Its 90-degree design allows for efficient fluid flow and easy installation. Compatible with Parker A-LOK and Swagelok brands, this fitting is ideal for use in industries such as aerospace, oil and gas, and chemical processing. Its compact size and durable construction make it a reliable choice for a variety of applications, including fluid transfer, pressure regulation, and system maintenance.
Top product features:
- Compression fitting connects two tubes with a 90-degree bend
- Material is stainless steel for corrosion resistance
- Maximum operating pressure is 5474 psi for high-pressure applications
Top product applications:
- Hydraulics
- Pneumatics
- Fitting Side A Connection Type Compression
Compression Fitting Elbow, Application Hydraulics, Pneumatics, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/16 in, Material Grade 316, Maximum Operating Pressure 5474 psi, Maximum Operating Temperature 1,200 Degrees F, Specific Fitting Shape 90 Degrees Elbow, Fitting Side A Pipe Size Not Applicable, Fitting Side B Pipe Size 1/8 in, Compatible Fitting Brands Parker A-LOK, Swagelok
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.12
- Package Width: 11.22
- Package Height: 4.72
- Package Weight: 0.17
Product info last updated on January 31, 2026 11:47pm UTC
Category: Pipes, Valves and Fittings
