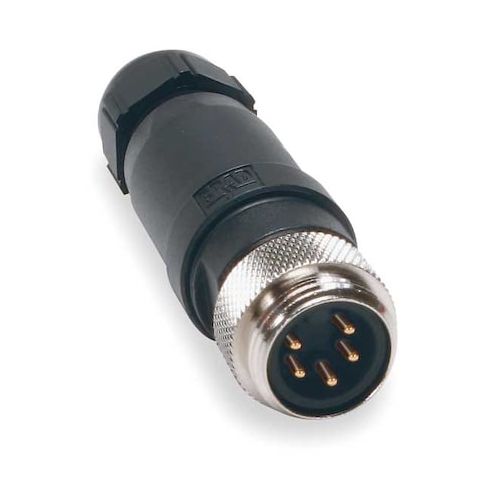

External Thread Connector, 5, Male, 16 AWG MPN:1A5006-34
External Thread Connector, 5, Male, 16 AWG
The Brad Harrison External Thread Connector, 5, Male, 16 AWG is a versatile and reliable electrical connector designed for a variety of applications. With its 5-conductor, 5-pole design and 16 AWG max wire size, it's ideal for use in industrial control panels, machinery, and other high-voltage applications. The connector's external threads and straight plug end make it easy to install and connect. Its polyamide material and NEMA 6P rating ensure durability and safety. This connector is perfect for applications requiring up to 600V AC or DC and 8 amps, making it a great choice for use in harsh environments.
Top product features:
- It has 5 poles and 5 conductors to handle multiple connections.
- It can handle up to 16 AWG wire size for flexibility in wiring.
- It has a 7/8-16 thread design for secure connections.
Top product applications:
- Industrial Control Panel
- Electrical Panel Enclosure
- Automotive Wiring Harness
Connector, External Threads, Male, Plug End Straight, Number Of Conductors 5, Number Of Poles 5, Max Wire Size 16 AWG, Voltage 600 AC, Voltage 600 DC, Amps AC 8, 7/8-16 Threads, Face Dia 0.550 In, Single Keyway, Material Polyamide, Black, NEMA Rating 6P, Standards UL, IEC
Additional Information
- Country of Origin: PL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 8.00
- Package Height: 1.00
- Package Weight: 26.00
Product info last updated on January 13, 2026 1:28pm UTC
Category: Industrial Electrical Controls and Automation
