Speed Reducer, C-Face, 56C, 25:1 MPN:F726-25-B5-G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0582172

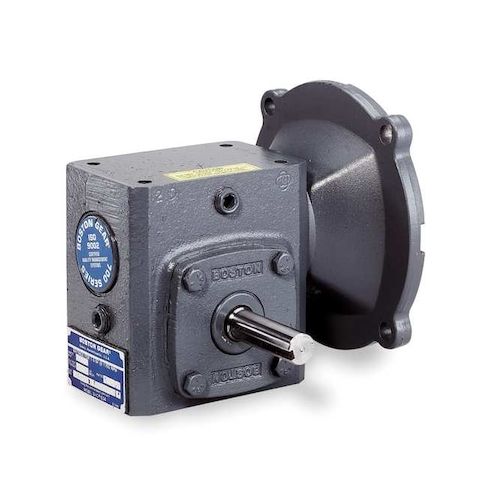

Speed Reducer, C-Face, 56C, 25:1
Boost efficiency and productivity with the Boston Gear Speed Reducer, designed for demanding applications. This C-Face speed reducer features a worm gear type and 25:1 gear ratio, reducing input speed to a maximum output speed of 70 RPM. With a maximum output torque of 1056 in-lb and overhung load capacity of 150 lb, it can handle heavy loads and withstand demanding conditions. Suitable for use in various industries, including manufacturing, material handling, and packaging, this speed reducer offers reliable performance and long-lasting durability. Its compact design and versatility make it an ideal solution for a wide range of applications.
Top product features:
- C-Face input connection allows for easy integration with various motor types
- Worm gear type provides high torque at low speed
- Cast iron housing provides a durable and long-lasting structure
Top product applications:
- Conveyor systems for light to medium-duty applications
- Packaging machinery
- Material handling equipment for manufacturing and warehousing operations
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 70 RPM, Motor Frame Designation 56C, Worm Center Distance 2.62 in, Base to Center 2.94 in, Gear Ratio 25:1, Rotation CW/CCW, Maximum Input Horsepower 1.5 hp, Maximum Output Torque 1056 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 14.00
- Package Height: 10.80
- Package Weight: 44.60
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on January 15, 2026 7:10pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
