Speed Reducer, C-Face, 56C, 25:1 MPN:F7713-25-B5-G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0419027

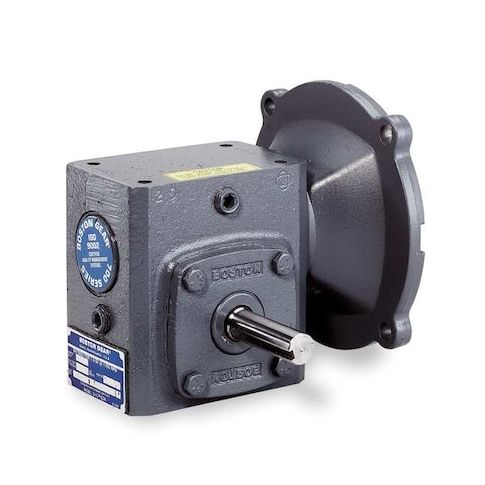

Speed Reducer, C-Face, 56C, 25:1
This Boston Gear Speed Reducer is a reliable and efficient solution for various industrial applications. With a gear ratio of 25:1, it reduces input speed to a maximum output speed of 70 RPM, making it ideal for applications requiring precise and controlled motion. Suitable for use in any orientation, this speed reducer features a cast iron housing, hardened and ground steel gears, and tapered roller bearings for added durability and performance. Its compact design and high torque output make it perfect for use in robotics, material handling, and packaging systems, providing a reliable and efficient solution for demanding industrial applications.
Top product features:
- C-Face input connection allows for easy mounting and connection to a motor
- Worm gear type provides a high gear ratio and quiet operation
- Tapered roller bearings provide a long-lasting and smooth rotation
Top product applications:
- Conveyor systems for material handling
- Packaging machinery for bottling or canning
- Machine tools for metalworking or woodworking
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 70 RPM, Motor Frame Designation 56C, Worm Center Distance 1.33 in, Base to Center 1.75 in, Gear Ratio 25:1, Rotation CW/CCW, Maximum Input Horsepower 0.3 hp, Maximum Output Torque 234 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 8.50
- Package Height: 8.50
- Package Weight: 11.60
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 4, 2026 11:14am UTC
Category: Bearings, V-belts and Power Transmission Equipment
