Electrically Three-Way Ball Valve MPN:8E066LF-003-2-1/2

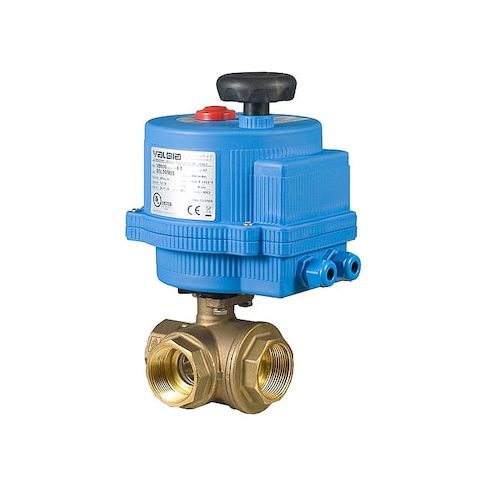

Electrically Three-Way Ball Valve
The BONOMI Electrically Three-Way Ball Valve is a versatile and reliable solution for a wide range of applications, including industrial processes, HVAC systems, and water treatment plants. With its two-piece construction and 100-240V AC voltage, this valve can handle high pressures and temperatures with ease, making it ideal for use in high-demand environments. Its 90-degree actuator operation and 9-second cycle time ensure precise control and efficient operation. The valve's manual override feature and fail-safe design provide added security and peace of mind. Suitable for use with steam, water, and other fluids, this valve is a valuable addition to any facility.
Top product features:
- Electrically actuated operation allows for remote control of the valve.
- The valve can be configured to fail in its last position, ensuring consistent operation in case of power loss.
- The actuator can be manually overridden, providing a backup control method.
Top product applications:
- Industrial Water Treatment Systems
- Process Control Systems
- Oil and Gas Industry Applications
Electrically Actuated Three-Way Ball Valve, Valve Construction Two-Piece, Voltage 100 to 240V AC, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 100 psi, Maximum Operating Pressure Differential 400 psi, Valve Deactivated State Not Applicable, Fail Safe Position Fail Last, Actuator Operation 90 Degrees , Actuator Cycle Time - 90 Degrees 9 sec, Actuator Features Manual Override, Ball Material Brass, Seal Material EPDM, FKM, Seat Material PTFE, Stem Material Brass
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 14.50
- Package Height: 14.50
- Package Weight: 26.50
Product info last updated on February 18, 2026 11:02am UTC
Category: HVACR and Appliance Controls
