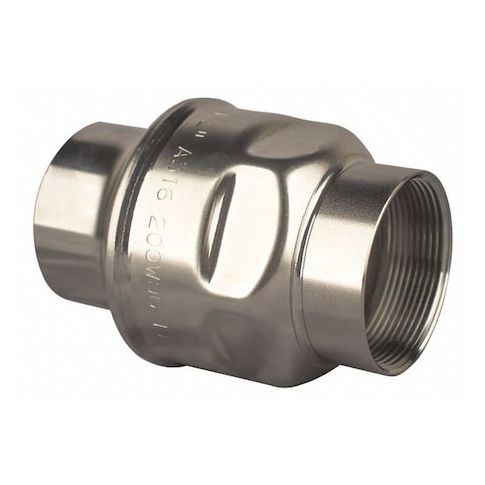

3/4" NPT Stainless Steel Spring Check Valve MPN:S250-3/4"
The BONOMI 3/4in NPT Stainless Steel Spring Check Valve is a reliable and efficient solution for various applications. Its inline design and spring-loaded mechanism ensure one-way flow control, preventing backflow and pressure drops. Suitable for use in water and steam systems, this valve can withstand temperatures up to 302°F and pressures up to 250 psi. Its corrosion-resistant 316 stainless steel construction and Viton seals make it ideal for harsh environments. Perfect for industrial, commercial, and residential applications, this valve is a great choice for plumbing, HVAC, and water treatment systems, ensuring safe and reliable operation.
Top product features:
- The valve has a single flow design to allow for efficient fluid flow.
- The valve is designed with an inline spring mechanism to provide reliable shut-off and backflow prevention.
- The valve is constructed from 316 stainless steel to provide high temperature and corrosion resistance.
Top product applications:
- Water treatment systems
- Steam trap applications
- High-temperature chemical injection systems
BONOMI S250-3/4 check valve with a 3/4 in nominal size, FNPT x FNPT connections, and an inline spring design for one-way flow control in gas, oil, and water systems. The valve has a stainless steel body with a 316 stainless steel spring and check mechanism, a 0.5 psi cracking pressure, and can be mounted horizontally or vertically.
Key Features:
- 3/4 in nominal valve size with 3/4 in female NPT connections on both ends
- Inline spring check design for one-way flow control
- Stainless steel body with 316 stainless steel internal spring and check mechanism
- FKM seal and FKM seat material
- Flow capacity: 16 gpm
- Cv: 15.95
- Maximum operating pressure: 250 psi WOG
- maximum water pressure: 250 psi
- Operating temperature range: -4 degrees F to 302 degrees F
- Horizontal or vertical mounting orientation
- Standards and certifications: ANSI B1.20.1, NSF 372, NSF 61, AISI 316
- Overall length: 2.63 in
- overall height: 1-47/64 in
- width: 1.73 in
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.70
- Package Height: 1.70
- Package Weight: 0.31
