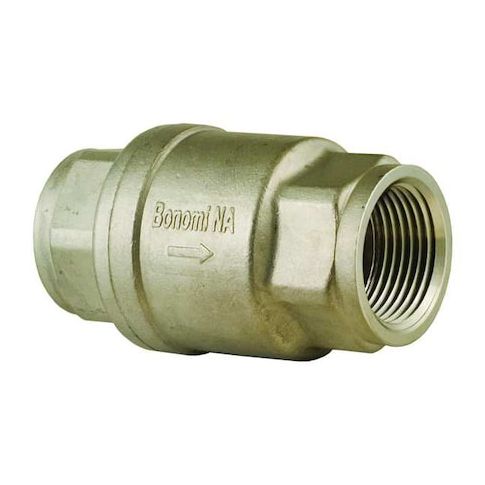

3/8" NPT Stainless Steel Spring Check Valve MPN:S800-3/8"
3/8" NPT Stainless Steel Spring Check Valve
The BONOMI S800-3/8 is a 3/8 in inline spring check valve for compatible gas, oil, steam, and water applications within specified ratings. It features a CF8M 316 stainless steel body, 316 stainless steel internal components, and PTFE seal and seat materials. This valve has female NPT connections on both ends, a 0.5 psi cracking pressure, and is specified for horizontal or vertical mounting.
Key Features:
- 3/8 in nominal valve size with 3/8 in FNPT x FNPT connections
- Inline spring check valve design with single-flow path and 2-way configuration
- CF8M 316 stainless steel body with 316 stainless steel check mechanism and spring
- PTFE seal and seat materials
- For media: gas, oil, steam, water
- Cracking pressure: 0.5 psi
- Flow rating: 3.5 gpm
- Cv: 3.5
- Maximum pressure: 800 psi WOG
- maximum steam pressure: 125 psi WSP
- Operating temperature range: -4 degrees F to 400 degrees F
- Specified for horizontal or vertical mounting
- mounting position: any
- Valve body style: inline
- full-flow designation: yes
- Overall length: 2.31 in
- overall height: 1 11/32 in
- Standards: ANSI B1.20.1
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.60
- Package Height: 1.70
- Package Weight: 0.40
Product info last updated on March 1, 2026 12:03pm UTC
Category: Pipes, Valves and Fittings
