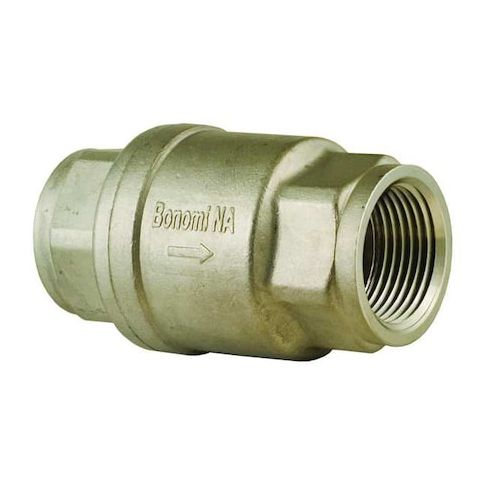

1/2" NPT Stainless Steel Spring Check Valve MPN:S800-1/2"
The BONOMI 1/2in NPT Stainless Steel Spring Check Valve is a reliable and versatile solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve ensures a tight seal and prevents backflow in piping systems. Its stainless steel construction and PTFE seals make it resistant to corrosion and wear, allowing for high-temperature and high-pressure operation. Ideal for use in chemical processing, water treatment, and steam systems, this valve provides a secure and efficient flow control solution. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Stainless Steel construction for corrosion resistance
- PTFE seals for low friction and long valve life
- Spring-loaded design to prevent backflow and ensure one-way flow
Top product applications:
- Steam Distribution Systems
- Chemical Processing Plants
- Water Treatment Facilities
The BONOMI S800-1/2 is a 1/2 in check valve with FNPT x FNPT connections for general-purpose service with gas, oil, steam, and water. This self-acting valve is intended for one-direction flow and reverse-flow prevention in piping and process systems. It features an inline body with a spring-operated design, a CF8M 316 stainless steel body and internal components, and PTFE seal and seat materials.
Key Features:
- 1/2 in nominal valve size with female NPT connections on both ends
- Connection type: FNPT x FNPT
- Body material: CF8M 316 stainless steel
- Check mechanism: swing
- Mechanism and body design: inline spring
- Seal and seat material: PTFE
- Spring material: 316 stainless steel
- Cracking pressure: 0.5 psi
- Flow coefficient: Cv 5.2
- Pressure ratings: 800 psi WOG / 800 psi water / 125 psi WSP steam
- Operating temperature range: -4 degrees F to 400 degrees F
- Mounting orientation: horizontal or vertical
- Valve body style: inline, 2-port configuration
- Overall length: 2.31 in
- Standard: ANSI B1.20.1
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.40
- Package Height: 1.40
- Package Weight: 0.43
