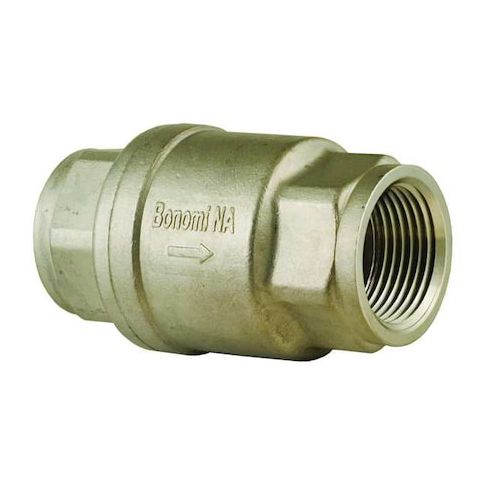

1-1/2" NPT Stainless Steel Spring Check Valve MPN:S800-11/2"
The 1-1/2in NPT Stainless Steel Spring Check Valve from BONOMI is a reliable and durable solution for various industrial applications. This inline spring check valve is designed for use in horizontal or vertical orientations, ensuring smooth flow and efficient operation. With a cracking pressure of 0.5 psi, it effectively prevents backflow and ensures a safe and secure operation. Suitable for use with water, steam, and other fluids, this valve is ideal for applications in chemical processing, power generation, and oil and gas industries, where high temperature and pressure resistance is required.
Top product features:
- 1.5in NPT Stainless Steel Spring Check Valve has a single flow design for inline installation.
- The valve features a spring-loaded mechanism to prevent backflow.
- The valve is made from 316 Stainless Steel for high-temperature resistance.
Top product applications:
- Pump suction and discharge lines
- Steam trap lines
- Water treatment systems
The BONOMI S800-11/2 is a 1-1/2 in inline spring check valve designed for one-way flow control in piping systems compatible with the listed media, pressure ratings, and temperature range. It features a 316 stainless steel body, 316 stainless steel internal components, and PTFE seat and seal materials. This valve is rated for use with gas, oil, steam, and water, and its FNPT x FNPT connections are specified for horizontal or vertical piping installation.
Key Features:
- - Size: 1-1/2 in nominal valve and pipe size.
- - Connection type: FNPT x FNPT with female NPT connections on both ends.
- - Body style: Inline spring check valve with one-way flow design.
- - Materials: CF8M 316 stainless steel body
- 316 stainless steel check mechanism and spring.
- - Seat and seal material: PTFE.
- - Cracking pressure: 0.5 psi.
- - Flow rating: 35.2 gpm
- Cv: 35.2.
- - Pressure ratings: 800 psi WOG maximum water pressure
- 125 psi WSP maximum steam pressure.
- - Temperature range: -4 degrees F minimum operating temperature to 400 degrees F maximum operating temperature.
- - Mounting orientation: horizontal or vertical.
- - Overall dimensions: 4.93 in length x 2.88 in width x 2-7/8 in height.
- - Standard: ANSI B1.20.1.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.20
- Package Height: 3.20
- Package Weight: 3.40
