Electrically Actuated Two-Way Ball Valve MPN:M8E766000-002-2-1/2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G316115914

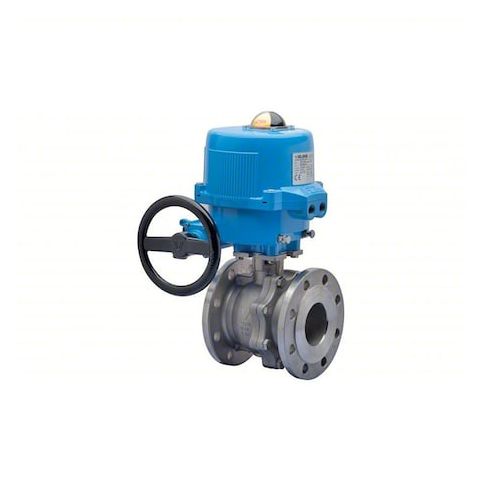

Electrically Actuated Two-Way Ball Valve
The Electrically Actuated Two-Way Ball Valve from BONOMI is a reliable and efficient solution for a wide range of applications, including water treatment, chemical processing, and oil and gas industries. Its stainless steel ball and PTFE seat ensure durability and resistance to corrosion, while the 24V AC/DC actuator provides precise control and a fail-safe position in the event of a power loss. With a cycle time of 27 seconds and an IP68 rating, this valve is suitable for harsh environments and demanding applications. Its compact design and manual override feature make it easy to install and maintain, offering a cost-effective solution for various industries and processes.
Top product features:
- Electrically actuated operation allows for remote control of the valve.
- The valve is designed with a two-piece construction for ease of maintenance and repair.
- The actuator features a manual override for emergency situations.
Top product applications:
- Water Treatment Plants
- Chemical Processing Plants
- Oil Refineries
Electrically Actuated Two-Way Ball Valve, Ball Material Stainless Steel, Nominal Valve Size 2 1/2 in, Maximum Pressure - Operating 275 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material FKM, Voltage 24V AC/DC, Fail Safe Position Fail Last, IP Rating IP68, Actuator Cycle Time - 90 Degrees 27 sec, Valve Construction Two-Piece, Actuator Features Manual Override, Connection Gender - Side 1 Female, Connection Type - Side 1 Flange
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 53.25
Product info last updated on April 9, 2026 11:55pm UTC
Category: HVACR and Appliance Controls
