Pneumatically Actuated Ball Valve MPN:8P766002-1-C1

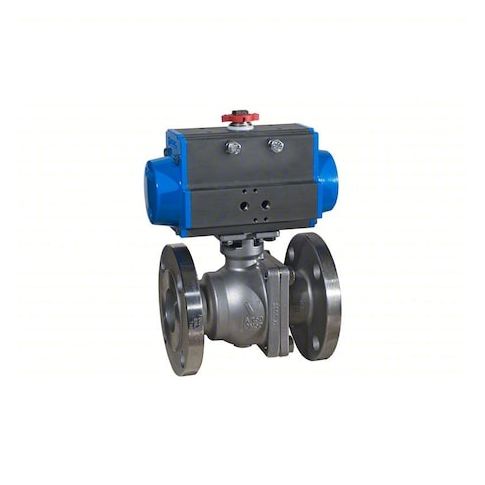

Pneumatically Actuated Ball Valve
The BONOMI Pneumatically Actuated Ball Valve is a reliable and efficient solution for various industrial applications. This two-way valve features a stainless steel ball and body, ensuring durability and resistance to corrosion. With a normally closed (NC) or normally open (NO) configuration, the valve can be easily integrated into control systems. The fail-safe position ensures safe operation in the event of power loss. Suitable for applications in the chemical, oil and gas, and pharmaceutical industries, this valve can withstand pressures up to 275 psi and temperatures suitable for steam service. Its compact design and robust construction make it an ideal choice for a wide range of processes.
Top product features:
- Pneumatically actuated operation allows for remote control of the valve
- Ball valve design provides full port flow for smooth, unobstructed passage of fluid
- Fail-safe position ensures the valve closes in the event of power loss or actuator failure
Top product applications:
- Water Treatment Plants
- Oil and Gas Production Facilities
- Chemical Processing Plants
Pneumatically Actuated Two-Way Ball Valve, Nominal Valve Size 1 in, Actuator Operation Air to Spring, Ball Material Stainless Steel, Valve Deactivated State Normally Closed (NC), Normally Open (NO), Fail Safe Position Fail Closed, Included Pilot Solenoid 110V AC Pilot Solenoid, Valve Body Style Straight, Body Material Stainless Steel, Average Surface Roughness (Ra) less than 1.0 micron, Ball Port Style Full Port, Maximum Pressure - Operating 275 psi, Maximum Pressure - Steam 150 psi
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 12.82
