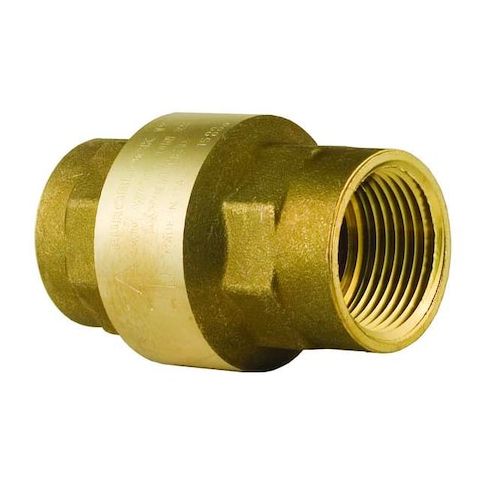

1/4" NPT Brass Spring Check Valve MPN:100012LF-1/4"
The Bonomi 1/4in NPT Brass Spring Check Valve is a reliable and efficient solution for various industrial applications. Designed for inline use, this valve allows for horizontal or vertical installation and can withstand temperatures between 10°F and 210°F. With a cracking pressure of 0.5 psi and a maximum water pressure of 400 psi, it's suitable for use in water systems. Its stainless steel spring and NBR seat ensure durability and resistance to corrosion. With a flow rate of 4.28 gpm, this valve is ideal for use in residential and commercial water treatment systems, as well as in HVAC and plumbing applications.
Top product features:
- 1/4in NPT Brass Spring Check Valve has a cracking pressure of 0.5 psi.
- It is designed for inline installation with a horizontal or vertical mounting orientation.
- The valve features a stainless steel spring for durability.
Top product applications:
- Water Supply Systems
- Steam Traps
- Hydraulic Systems
BONOMI 100012LF-1/4 is a 1/4 in. inline spring check valve with FNPT x FNPT connections. It is designed for general-purpose service with gas, oil, and water and is configured for one-way flow and reverse-flow control in piping systems. The lead-free brass body, 0.5 psi cracking pressure, and full-flow design
- mounting orientation: horizontal or vertical.
Key Features:
- 1/4 in. valve size with female NPT connections on both ends
- Inline spring check design with single-flow path and 2-way configuration
- Lead-free brass body
- Spring check mechanism with PPS check mechanism material
- Flow rating: 4.28 gpm
- Cv: 2.1
- Cracking pressure: 0.5 psi
- Maximum operating pressure: 400 psi
- Maximum temperature: 210 degrees F
- Minimum operating temperature: -4 degrees F
- Seal and seat materials: Viton, Buna-N, and NBR
- Spring material: 302 stainless steel
- Mounting orientation: horizontal or vertical
- Certifications and standards: NSF 61, ANSI B1.20.1, NSF 372, UL Listed
- Overall size: 1.73 in. L x 1-1/16 in. H x 1-1/16 in. W
- Hex size: 13/16 in.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.30
- Package Height: 2.50
- Package Weight: 0.20
