1" NPT Brass Spring Check Valve MPN:100012LF-1"
1" NPT Brass Spring Check Valve

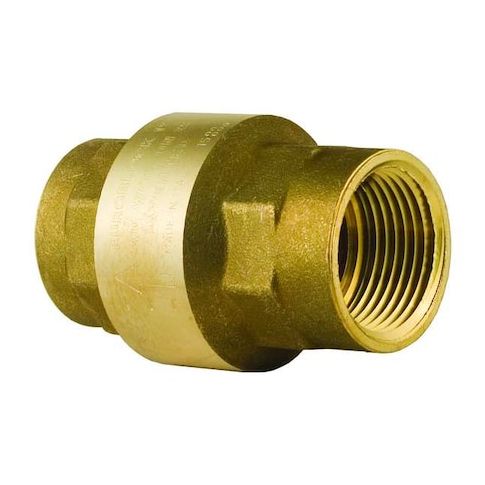

The 1in NPT Brass Spring Check Valve from BONOMI is a reliable and efficient solution for various industrial applications. This inline spring check valve ensures one-way flow, preventing backflow and ensuring safe operation in systems where reverse flow could cause damage or contamination. Its brass body and stainless steel spring provide durability and resistance to corrosion, while its NBR seat ensures a tight seal. With a maximum temperature rating of 210°F and a maximum water pressure rating of 400 psi, this valve is suitable for a wide range of applications, including plumbing, HVAC, and industrial piping systems.
Top product features:
- Inline design for easy installation
- Spring mechanism for automatic shut-off
- Stainless steel spring material for durability
Top product applications:
- Industrial Process Control Systems
- Water Treatment Plants
- Hydraulic Systems
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves Brass, Pipe or Tube Size 1 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Max. Temp. - Valves 210 Degrees F, Min. Temp. - Valves 10 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves Not Rated, Seat Material NBR, Spring Material Stainless Steel, Flow - Valves 15.95 gpm, Full Flow - Valves Yes
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.10
- Package Height: 2.90
- Package Weight: 0.70
