2" NPT Brass Spring Check Valve MPN:100012LF-2"
2" NPT Brass Spring Check Valve

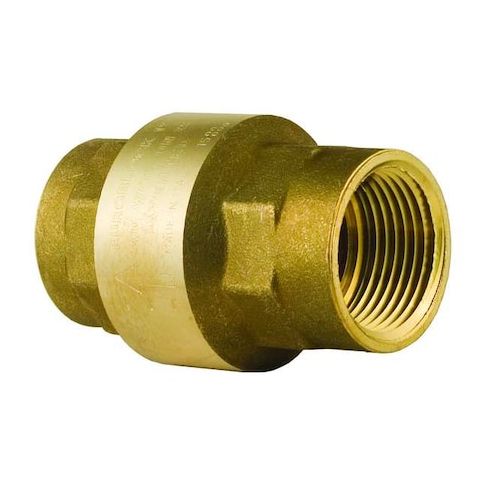

The BONOMI 100012LF-2 is a 2 in inline spring check valve with FNPT x FNPT connections and a lead-free brass body. It is for general-purpose flow control in compatible gas, oil, and water lines
- intended to permit flow in one direction and restrict reverse flow. This 2-way valve features a swing check mechanism, full-flow design, and a cracking pressure of 0.5 psi.
Key Features:
- 2 in nominal valve size with female NPT connections on both ends
- Lead-free brass body with PPS check mechanism
- Inline spring body design with swing check mechanism
- Media: gas, oil, water
- Cracking Pressure: 0.5 psi
- Flow: 56.41 gpm
- Cv: 71.3
- Maximum operating pressure: 400 psi
- 400 psi WOG
- Operating temperature range: -4 degrees F to 210 degrees F
- Seat/Seal Material: Buna-N, NBR
- Spring Material: 302 stainless steel
- Mounting orientation: horizontal, vertical
- Certification: NSF 61
- Standards: ANSI B1.20.1, NSF 372, UL Listed
- Overall dimensions: 3.62 in L x 3-29/64 in H x 3.44 in W
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.60
- Package Height: 4.00
- Package Weight: 2.25
Product info last updated on January 19, 2026 9:23pm UTC
Category: Pipes, Valves and Fittings
