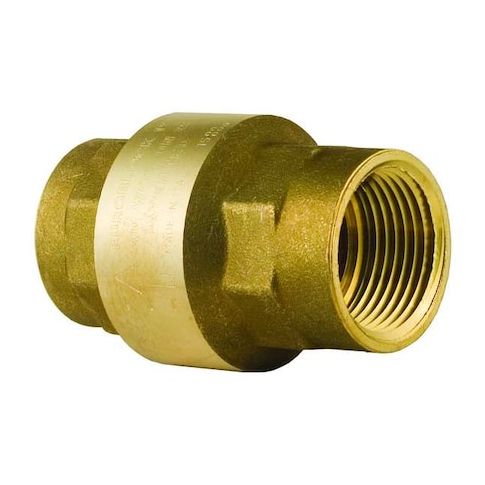

2-1/2" NPT Brass Spring Check Valve MPN:100012LF-2-1/2"
This 2-1/2in NPT Brass Spring Check Valve from BONOMI is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it allows for smooth flow while preventing backflow and water hammer. Its brass body and stainless steel spring ensure durability and resistance to corrosion. With a cracking pressure of 0.5 psi and a maximum water pressure of 400 psi, it can handle demanding environments. Ideal for use in water treatment, irrigation, and industrial processes, this valve provides a secure and long-lasting solution for ensuring the integrity of your system.
Top product features:
- Inline spring mechanism for self-actuating closure
- NBR seat material for resistance to corrosion and wear
- Stainless steel spring material for durability and resistance to corrosion
Top product applications:
- Drinking water systems
- Steam heating systems
- Gas distribution systems
BONOMI 100012LF-2-1/2 is a 2-1/2 in. inline spring check valve with FNPT x FNPT connections. For general-purpose flow control in gas, oil, and water lines
- configured for one-direction flow and reverse-flow reduction. The lead-free brass body, swing check mechanism, and full-flow design
- rated flow: 91.79 gpm with a 0.5 psi cracking pressure.
Key Features:
- Valve type: Inline spring check valve, single-flow design, 2-way
- Size: 2-1/2 in. nominal valve size with 2-1/2 in. FNPT female connections on both ends
- Body material: Lead-free brass
- Check mechanism: Swing design with PPS mechanism material
- Seal and seat materials: Buna-N seal, Buna-N/NBR seat
- Spring material: 302 stainless steel
- Flow rating: 91.79 gpm
- Cv: 90.1
- Cracking pressure: 0.5 psi
- Pressure ratings: 175 psi WOG maximum pressure, 400 psi maximum water pressure
- Temperature range: -4°F minimum operating temperature to 210°F maximum operating temperature
- Mounting orientation: Horizontal or vertical
- Dimensions: 4.37 in. overall length, 4 25/64 in. overall height and width, 3 1/4 in. hex size
- Standards and certifications: NSF 61, NSF 372, UL Listed, ANSI B1.20.1
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.50
- Package Height: 4.50
- Package Weight: 4.77
