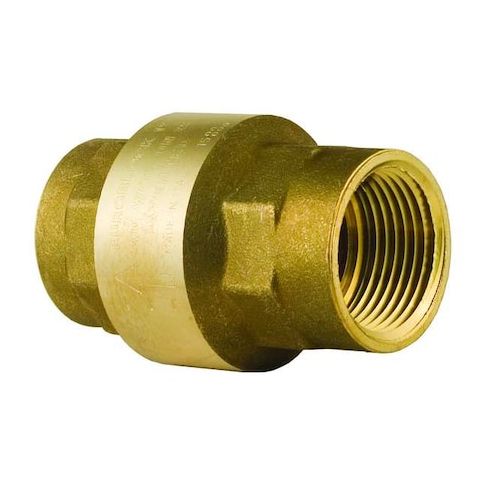

3" NPT Brass Spring Check Valve MPN:100012LF-3"
The 3in NPT Brass Spring Check Valve from BONOMI is a reliable and efficient solution for various industrial applications. This inline spring check valve is designed for use in both horizontal and vertical orientations, making it suitable for a wide range of piping systems. Its stainless steel spring and NBR seat ensure durability and resistance to corrosion, while its brass body provides excellent flow characteristics. With a maximum water pressure of 400 psi and a flow rate of 144 gpm, this valve is ideal for use in water treatment, irrigation, and industrial processes. Its compact size and easy installation make it a great choice for new installations or replacements.
Top product features:
- Inline spring mechanism
- NBR seat material
- Stainless steel spring material
Top product applications:
- Water treatment and filtration systems
- Steam trap applications
- High-pressure industrial piping systems
The BONOMI 100012LF-3 is a 3 in. inline spring check valve with FNPT x FNPT connections and a lead-free brass body. It is intended for one-way flow control in gas, oil, and water systems and helps prevent reverse flow. The spring check mechanism, full-flow design, and 0.5 psi cracking pressure are listed product specifications
- the valve may be installed horizontally or vertically.
Key Features:
- 3 in. inline spring check valve
- Lead-free brass body construction
- 3 in. female NPT connections on both ends
- For use with gas, oil, and water
- Flow rating: 144 gpm
- Cv: 141.7
- Cracking pressure: 0.5 psi
- Maximum operating pressure: 175 psi WOG
- Maximum water pressure: 400 psi
- Operating temperature range: -4°F to 210°F
- Internal materials: PPS check mechanism, 302 stainless steel spring, Buna-N/NBR seat and seal
- Installation orientation: horizontal or vertical
- Standards and listings: NSF 61, ANSI B1.20.1, NSF 372, UL Listed
- Dimensions: 4.86 in. overall length
- 5 1/4 in. overall height and width
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 6.95
