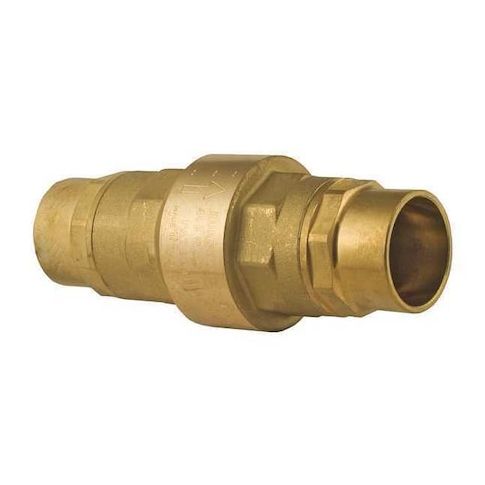

1/2" Sweat Brass Spring Check Valve MPN:100712LF-1/2"

• BONOMI 100712LF-1/2 is a 1/2 in inline spring check valve with female sweat x sweat connections and a lead-free brass body. It is specified for compatible gas, oil, and water applications and is intended for one-direction flow control and reverse-flow reduction in compatible lines. The valve features a swing check mechanism, a full-flow design, and a 0.5 psi cracking pressure.

  Key Features:

  • 2-way check valve with inline body style and inline spring mechanism/body design
  • Lead-free brass body
  • 1/2 in female sweat x sweat connections
  • Flow rating: 9.36 gpm
  • Cv: 8.1
  • Pressure ratings: 400 psi WOG maximum pressure, 400 psi maximum operating pressure, and 200 psi maximum water pressure
  • Operating temperature range: -4 degrees F to 210 degrees F
  • Internal materials: PPS check mechanism, 302 stainless steel spring, Buna-N seat, and Viton/Buna-N seals
  • Mounting orientation: horizontal or vertical
  • Standards and listings: NSF 61, ANSI B16.18, NSF 372, UL Listed
  • Dimensions: 3.43 in overall length, 1-3/8 in overall height, and 1.36 in width
