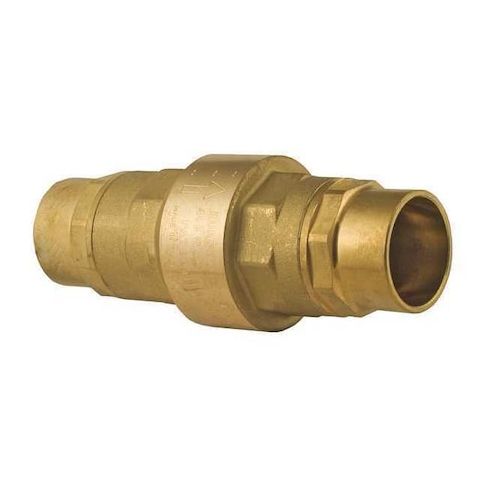

3/4" Sweat Brass Spring Check Valve MPN:100712LF-3/4"
The Bonomi 3/4in Sweat Brass Spring Check Valve is a reliable and efficient solution for various applications. Ideal for use in water treatment, HVAC, and industrial systems, this valve prevents backflow and ensures a steady flow of fluids. Its inline design and spring-loaded mechanism provide a consistent cracking pressure of 0.5 psi, making it suitable for horizontal and vertical installations. With a maximum temperature rating of 210°F and a maximum water pressure of 200 psi, this valve can handle demanding applications. Its durable brass body and stainless steel spring ensure long-lasting performance and resistance to corrosion.
Top product features:
- Inline spring mechanism allows for reliable flow control
- Stainless steel spring provides durability and resistance to corrosion
- NBR seat material ensures a tight seal even under high pressure conditions
Top product applications:
- Hot Water Systems
- Steam Traps
- Water Distribution Systems
BONOMI 100712LF-3/4 is a 3/4 in. inline spring check valve with sweat x sweat connections and a lead-free brass body. It is intended for compatible gas, oil, and water line applications requiring one-way flow and reverse-flow reduction. The valve features a swing check mechanism, a full-flow design, and a 0.5 psi cracking pressure.
Key Features:
- Nominal size: 3/4 in.
- Connection type: Sweat x sweat
- female connections on both sides
- Body material: Lead-free brass
- Valve type: Inline spring check valve with swing check mechanism
- Flow capacity: 16.3 gpm
- Cv: 14.1
- Pressure ratings: 400 psi WOG maximum pressure
- 200 psi maximum water pressure
- Operating temperature range: -4 F to 210 F
- Seat material: Buna-N / NBR
- seal materials: Buna-N and Viton
- Spring material: 302 stainless steel
- check mechanism material: PPS
- Mounting orientation: Horizontal or vertical
- Standards and listings: NSF 61, ANSI B16.18, NSF 372, UL Listed
- Dimensions: 4.17 in. overall length, 1-21/32 in. overall height, 1.65 in. width
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.70
