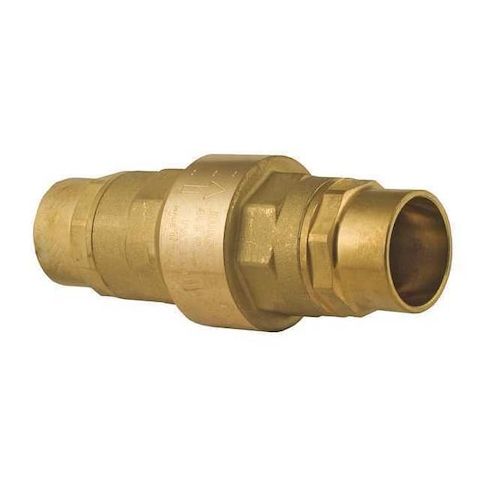

1-1/2" Sweat Brass Spring Check Valve MPN:100712LF-1-1/2"
This 1-1/2in Sweat Brass Spring Check Valve from BONOMI is a reliable solution for various applications, including plumbing, HVAC, and industrial systems. Its inline spring design and stainless steel spring material ensure long-lasting performance and resistance to corrosion. The valve's 0.5 psi cracking pressure and 200 psi maximum water pressure rating make it suitable for a wide range of pressures. It can handle up to 51.9 gpm flow rate, making it a great option for applications requiring high water flow. Its horizontal and vertical mounting orientation flexibility also adds to its versatility.
Top product features:
- Inline spring mechanism for self-actuating closure
- NBR seat material for resistance to water and steam
- Stainless steel spring material for durability and resistance to corrosion
Top product applications:
- Compressed air systems to prevent backflow and contamination
- Steam heating systems to prevent water hammer and damage
- Plumbing systems in residential and commercial buildings to prevent backflow and contamination
BONOMI 100712LF-1-1/2 is a 1-1/2 in check valve with sweat x sweat connections and an inline spring body design. It features a lead-free brass body and is intended for use with compatible gas, oil, and water applications within specified ratings. The valve allows one-way flow and helps limit reverse flow in piping systems, with a 0.5 psi cracking pressure, Cv of 51.9, and flow rating of 51.9 gpm. It can be mounted horizontally or vertically.
Key Features:
- Check valve with inline spring body design
- Connection size: 1-1/2 in on both sides
- Connection type: Sweat x sweat
- solder connection
- Body material: Lead-free brass
- Check mechanism material: PPS
- Seat and seal material: Buna-N / NBR
- Spring material: 302 stainless steel
- Flow rating: 51.9 gpm
- Cv: 51.9
- Cracking pressure: 0.5 psi
- Maximum operating pressure: 400 psi
- Maximum water pressure: 200 psi
- Operating temperature range: -4 degrees F to 210 degrees F
- Certifications and standards: NSF 61, ANSI B16.18, NSF 372, UL Listed
- Overall size: 5.79 in L x 2-7/8 in H x 2-7/8 in W
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 3.70
- Package Weight: 1.56
