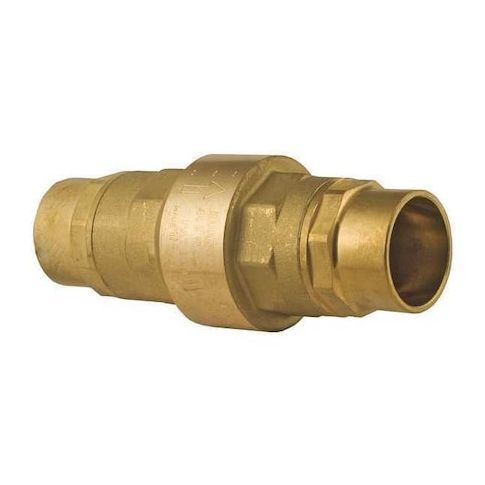

2" Sweat Brass Spring Check Valve MPN:100712LF-2"
The BONOMI 2in Sweat Brass Spring Check Valve is a reliable and efficient solution for various applications, including HVAC, plumbing, and water treatment systems. Its inline spring design allows for smooth flow and easy installation, while its cracking pressure of 0.5 psi ensures consistent performance. The valve's brass body and stainless steel spring provide durability and resistance to corrosion, making it suitable for temperatures ranging from 10°F to 210°F. With a flow rate of 82.19 gpm, this valve is ideal for applications requiring high water pressure and flow, such as large-scale irrigation and water supply systems.
Top product features:
- It has a single flow design to allow for efficient fluid flow.
- It is an inline spring check valve to prevent backflow and ensure safe operation.
- It has a stainless steel spring to provide durability and resistance to corrosion.
Top product applications:
- Industrial Water Supply Systems
- Pump Suction Lines
- Steam Heating Systems
The BONOMI 100712LF-2 is a 2 in. inline spring check valve with sweat x sweat connections and a lead-free brass body. It allows flow in one direction and helps prevent reverse flow in piping systems. This valve is rated for use with gas, oil, and water, and features a full-flow design with a 0.5 psi cracking pressure.
Key Features:
- 2 in. nominal valve size with female sweat connections on both ends.
- Lead-free brass body with inline body style and single-flow design.
- Swing check mechanism with PPS check mechanism material.
- Buna-N seal and seat material with 302 stainless steel spring.
- Flow capacity: 82.19 gpm
- Cv: 82.19.
- Pressure ratings: 400 psi operating, 400 psi WOG, and 200 psi maximum water pressure.
- Temperature range: -4 degrees F minimum operating temperature to 210 degrees F maximum operating temperature.
- Mounting orientation: horizontal or vertical.
- Standards and listings: NSF 61, NSF 372, ANSI B16.18, UL Listed.
- Overall dimensions: 6.56 in. length
- 3 29/64 in. height and width.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 3.55
