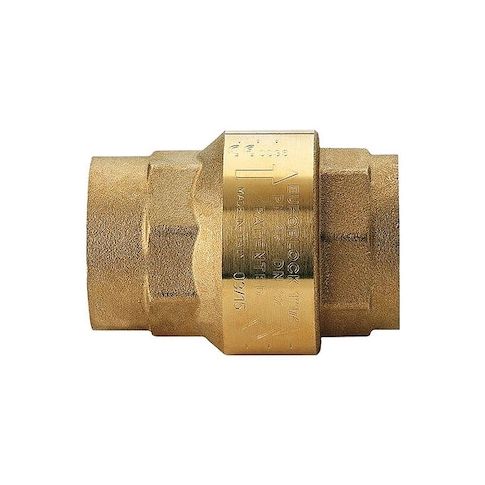

3/4" NPT Brass Spring Check Valve MPN:100003-3/4"
The BONOMI 3/4in NPT Brass Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve is ideal for plumbing, HVAC, and industrial systems. Its spring-loaded design ensures a tight seal, preventing backflow and ensuring a safe and clean system. With a maximum temperature range of 352°F and a maximum water pressure of 400 psi, this valve can withstand demanding conditions. Its compact size and lightweight design make it easy to install and maintain, making it a great choice for a wide range of applications.
Top product features:
- 3/4in NPT Brass Spring Check Valve has a single flow design for inline use.
- The valve has a cracking pressure of 0.5 psi for precise control.
- The valve seat is made of Viton for durability and resistance to corrosion.
Top product applications:
- Water Supply Systems
- Steam Power Plants
- Industrial Process Control
The BONOMI 100003-3/4 is a 3/4 in check valve with an inline spring design and FNPT x FNPT connections. It is designed to allow one-direction flow and help reduce reverse flow in compatible gas, oil, steam, or water applications within the listed pressure and temperature ratings. The brass body, swing check mechanism, and full-flow design are specified for inline installation in horizontal or vertical mounting positions.
Key Features:
- 3/4 in nominal valve and pipe size
- FNPT x FNPT female NPT connections
- Brass body
- Inline spring design with swing check mechanism
- PPS check mechanism material
- Viton (FKM) seal and seat material
- 302 stainless steel spring
- 0.5 psi cracking pressure
- Cv 15.1 flow coefficient
- 9.94 gpm flow rate
- 400 psi maximum operating water pressure
- 125 psi maximum steam pressure
- Temperature range: -4 to 366 degrees F
- Full-flow design
- Horizontal or vertical mounting orientation
- Dimensions: 2.48 in overall length, 1-23/32 in overall height, 1.65 in width
- ANSI B1.20.1 standard
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.00
- Package Height: 2.10
- Package Weight: 0.54
