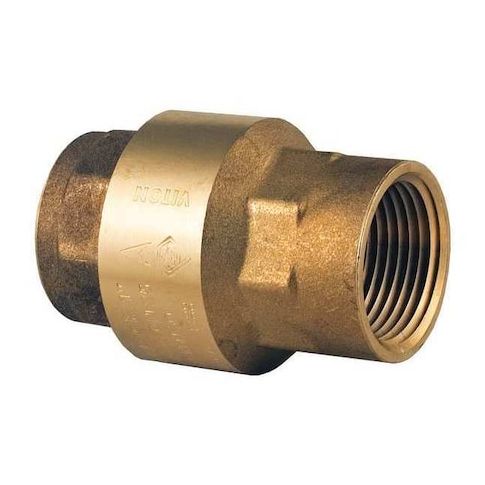

1" NPT Brass Spring Check Valve MPN:100003-1"
The 1in NPT Brass Spring Check Valve from BONOMI is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this inline spring check valve features a cracking pressure of 0.5 psi and can withstand temperatures up to 352°F. With a flow rate of 15.95 gpm, it's ideal for water and steam systems. The valve's brass body and stainless steel spring ensure durability, while the Viton seat provides a tight seal. Perfect for industrial, commercial, or residential use, this check valve is a great addition to any system requiring precise control and reliable performance.
Top product features:
- 1in NPT Brass Spring Check Valve has a single flow design.
- It features an inline spring mechanism.
- The valve has a Viton seat material.
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- Industrial Process Control Systems
The BONOMI 100003-1 is a 1 in check valve with an inline spring body design for one-way flow applications in systems handling gas, oil, steam, and water. It features a brass body with FNPT x FNPT connections, a 0.5 psi cracking pressure, and a full-flow design. Mounting orientation is horizontal or vertical. The valve is rated for operating pressures up to 400 psi for water and 125 psi for steam.
Key Features:
- 1 in FNPT x FNPT connections with female NPT threads on both ends
- Brass body with inline valve body style
- Inline spring design with swing check mechanism
- Check mechanism material: PPS
- Seal and seat materials: FKM/Viton
- Spring material: 302 stainless steel
- Flow rate: 15.95 gpm
- Cv: 22.1
- Cracking pressure: 0.5 psi
- Full-flow design
- Mounting orientation: horizontal or vertical
- Operating temperature range: -4 to 366 degrees F
- Overall size: 2.85 in L x 1-15/16 in H x 1.93 in W
- Standards: ANSI B1.20.1
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.10
- Package Height: 2.10
- Package Weight: 0.75
