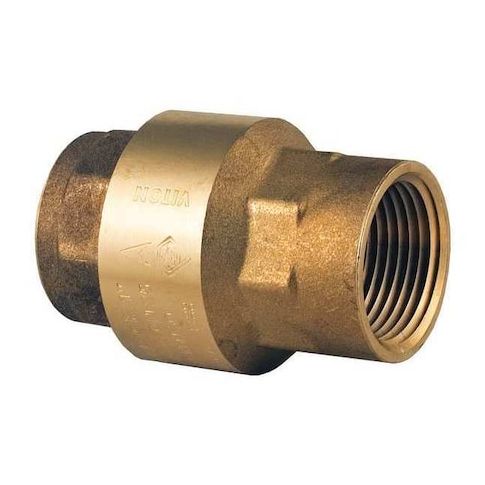

1-1/2" NPT Brass Spring Check Valve MPN:100003-1-1/2"
The Bonomi 1-1/2in NPT Brass Spring Check Valve is a reliable and efficient solution for various industrial applications. Designed for horizontal or vertical mounting, this valve ensures one-way flow and prevents backflow, making it ideal for use in water treatment, HVAC, and chemical processing systems. The valve's stainless steel spring and Viton seat provide long-lasting durability and resistance to corrosion, while its brass body ensures excellent heat transfer and resistance to high temperatures. With a maximum temperature range of 352°F and a maximum pressure rating of 400 psi, this valve is suitable for a wide range of applications where high performance and reliability are critical.
Top product features:
- 1-1/2in NPT Brass Spring Check Valve has a spring-loaded mechanism that prevents backflow when the main flow is shut off.
- The valve has a cracking pressure of 0.5 psi, allowing for precise control over fluid flow.
- The valve is designed for inline installation, allowing for easy integration into existing piping systems.
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- Hydraulic Systems
BONOMI 100003-1-1/2 is a 1-1/2 in check valve with an inline spring check valve design and FNPT x FNPT connections. It is used in general-purpose flow control for one-way flow applications and reverse-flow reduction in systems handling gas, oil, steam, and water. The brass body and full-flow design provide a flow rating of 35.72 gpm with a 0.5 psi cracking pressure.
Key Features:
- 1-1/2 in nominal valve and pipe size with female NPT connections on both ends
- Brass body construction
- Inline spring check valve design with single-flow path
- For media: gas, oil, steam, and water
- Flow rate: 35.72 gpm
- Cv: 51.9
- Cracking pressure: 0.5 psi
- Maximum operating pressure: 400 psi
- Maximum steam pressure: 125 psi WSP
- Operating temperature range: 0 to 352 degrees F
- Seat/seal material: FKM/Viton
- Spring material: 302 stainless steel
- Mounting orientation: horizontal or vertical
- Dimensions: 3.31 in overall length, 2-7/8 in overall height, 2-7/8 in width
- Standard: ANSI B1.20.1
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.10
- Package Height: 3.60
- Package Weight: 1.60
