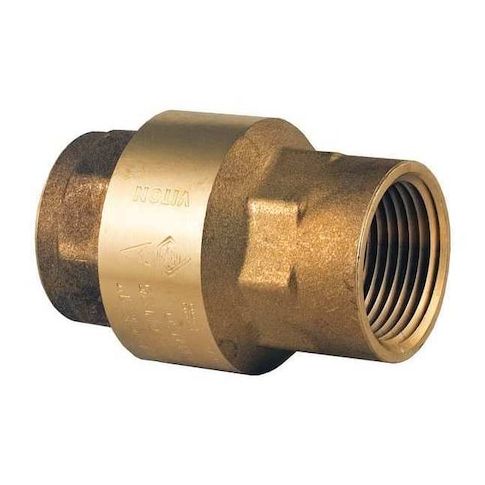

2" NPT Brass Spring Check Valve MPN:100003-2"
The 2in NPT Brass Spring Check Valve from BONOMI is a reliable and efficient solution for various industrial applications. Suitable for horizontal or vertical mounting, this valve features a single flow design with an inline spring mechanism, ensuring smooth operation and minimal pressure loss. With a cracking pressure of 0.5 psi, it can handle high water and steam pressures, making it ideal for use in water treatment, HVAC, and steam systems. Additionally, its temperature range of -20°F to 352°F and flow rate of 56.41 gpm make it a versatile option for various industries, including chemical processing and power generation.
Top product features:
- 2in NPT Brass Spring Check Valve has a single flow design for inline installation
- The valve features a spring mechanism for automatic shut-off in the event of reverse flow
- The valve is constructed with a stainless steel spring and a Viton seat for durability and resistance to corrosion
Top product applications:
- Steam Trap
- Water Supply System
- Hydroelectric Power Plant
BONOMI 100003-2 is a 2 in brass spring check valve with FNPT x FNPT connections for one-way flow control in general-purpose piping systems. It is for gas, oil, steam, and water applications and opens at a 0.5 psi cracking pressure for reverse-flow control. The inline body has a single-flow design and can be mounted in horizontal or vertical orientations.
Key Features:
- Body material: Brass construction with inline valve body style.
- Connection size and type: 2 in female NPT on both sides
- FNPT x FNPT connections.
- Check design: Inline spring mechanism with single-flow design.
- Flow capacity: 56.41 gpm flow rating with Cv of 71.3.
- Pressure ratings: 400 psi maximum operating/water pressure
- 125 psi maximum steam pressure.
- Temperature range: -4 degrees F minimum operating temperature to 366 degrees F maximum operating temperature.
- Wetted components: PPS check mechanism, FKM seal/seat material, and 302 stainless steel spring.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 3.62 in overall length, 3 29/64 in overall height and width, 2 5/8 in hex size.
- Standard: ANSI B1.20.1.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.60
- Package Height: 4.10
- Package Weight: 2.30
