Mechanical Lug, 250 kcmil Max, 1 Conductor, 1 Hole, 13/32 in Stud, Copper MPN:L250
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2831631
Mechanical Lug, 250 kcmil Max, 1 Conductor, 1 Hole, 13/32 in Stud, Copper

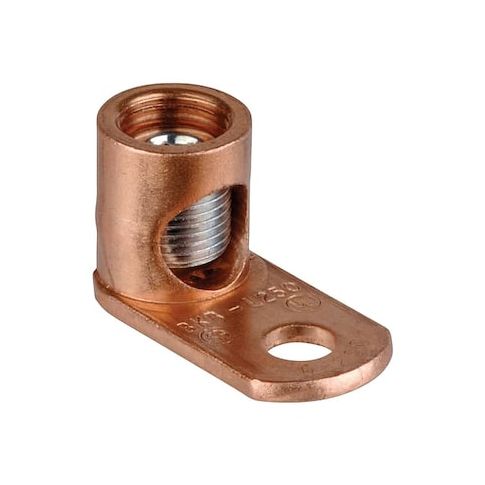

The Blackburn Mechanical Lug is a compact, high-performance connector designed for use with stranded copper wire. Suitable for applications requiring a maximum operating temperature of 194°F and a maximum voltage of 1,000V, this lug is ideal for use in electrical systems, industrial settings, and commercial environments. With a maximum conductor size of 250 kcmil, it can handle heavy loads and provide reliable connections. Its copper construction and hex head design ensure durability and ease of installation, making it a versatile and reliable choice for a variety of applications, including electrical distribution, lighting, and power transmission systems.
Top product features:
- Connects stranded copper wire up to 250 kcmil in size
- Accepts a 13/32 in stud for secure installation
- Withstands operating temperatures up to 194 Degrees F
Top product applications:
- Outdoor Lighting Installation
- Electrical Panel Upgrade
- High-Power Solar Panel Connection
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 13/32 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.09 in, Tongue Width 0.94 in, Tongue Thickness 0.13 in, Connector Type Compact
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.00
- Package Height: 1.10
- Package Weight: 0.17
Product info last updated on January 13, 2026 1:42pm UTC
Category: Electrical Connectors
