Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 17/64 in Stud, Copper MPN:STC1102
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1727862

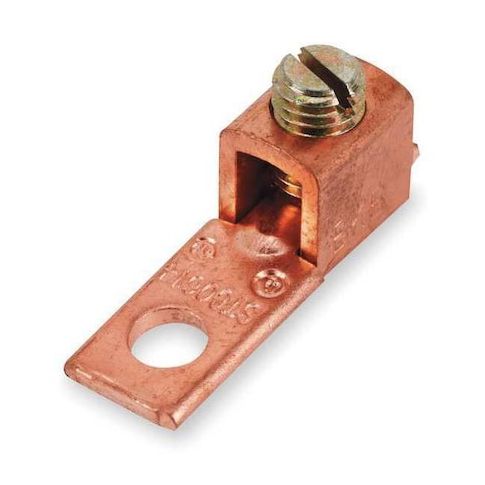

Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 17/64 in Stud, Copper
This mechanical lug is designed for use with stranded copper wire sizes 2 AWG to 1/0 AWG and a stud size of 17/64 in. Its copper body provides excellent conductivity and durability, making it ideal for applications in electrical and industrial settings. The lug's slotted head and single hole design simplify installation and ensure secure connections. With a maximum operating temperature of 194°F and a voltage rating of 1,000V, this mechanical lug is suitable for a wide range of applications, including electrical panels, wiring harnesses, and industrial control systems. Its compact size and ease of use make it a reliable choice for professionals and DIYers alike.
Top product features:
- Mechanical lug for copper stranded wire with a minimum size of 2 AWG and a maximum size of 1/0 AWG.
- Slotted head style for easy termination.
- Copper body material with a maximum operating temperature of 194 Degrees F and a maximum voltage of 1,000 V.
Top product applications:
- Wire harness assembly
- Automotive electrical connections
- Industrial control panel wiring
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 17/64 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.88 in, Tongue Width 0.63 in, Tongue Thickness 0.13 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 12.00
- Package Height: 11.00
- Package Weight: 5.00
Product info last updated on February 6, 2026 8:31pm UTC
Category: Electrical Connectors
