Insulated Multitap Connector, 4.63 In. L MPN:AMTD250105
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1675134

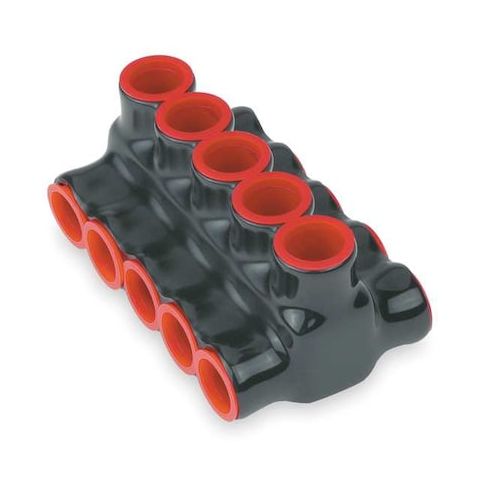

Insulated Multitap Connector, 4.63 In. L
The Blackburn Insulated Multitap Connector is a versatile and reliable solution for connecting multiple conductors in a variety of applications. Its aluminum body and hex head design provide a secure and durable connection, while its insulation material (PVC) protects against electrical shock and corrosion. With a maximum operating temperature of 194°F and a maximum voltage of 600V, this connector is suitable for use in a range of industries, including electrical, construction, and manufacturing. The 5-port design allows for easy connection and disconnection, making it an ideal choice for applications where multiple conductors need to be connected quickly and efficiently.
Top product features:
- Insulated for protection against electrical shock
- Compatible with stranded copper wire sizes from 10 AWG to 250 kcmil
- Has a maximum operating temperature of 194 Degrees F, allowing for use in high-temperature applications
Top product applications:
- Wire Harness Connectors
- Electrical Panel Connectors
- Circuit Breaker Connectors
Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, Copper-Clad Aluminum, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 5, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 2.90
- Package Height: 2.40
- Package Weight: 0.74
Product info last updated on March 6, 2026 2:20pm UTC
Category: Electrical Connectors
