Insulated Multitap Connector, 2.38 In. W MPN:AMTT250
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1546334

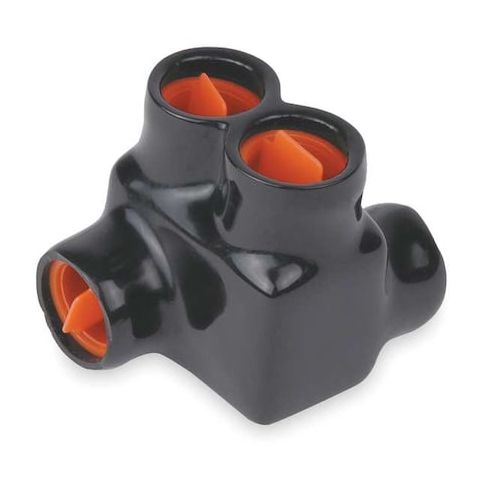

Insulated Multitap Connector, 2.38 In. W
The Blackburn Insulated Multitap Connector is a versatile and reliable solution for connecting multiple conductors in a variety of applications. Designed for use with aluminum, copper, and copper-clad aluminum conductors, this connector features a durable aluminum body and PVC insulation, ensuring secure and safe connections. With a maximum operating temperature of 194°F and a maximum voltage of 600V, this connector is suitable for use in a range of industries, including electrical, construction, and manufacturing. Its compact hex head design and multiple port options make it an ideal choice for applications requiring flexible and efficient connections.
Top product features:
- Insulated to protect against electrical shock
- Compatible with stranded copper wire sizes from 10 AWG to 250 kcmil
- Has a maximum operating temperature of 194 Degrees F
Top product applications:
- Construction wire connections
- Marine electrical connections
- Temporary power connections for events or festivals
Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, Copper-Clad Aluminum, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.10
- Package Height: 2.30
- Package Weight: 0.27
Product info last updated on March 7, 2026 2:17pm UTC
Category: Electrical Connectors
