Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum MPN:ADR11
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1325046
Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum

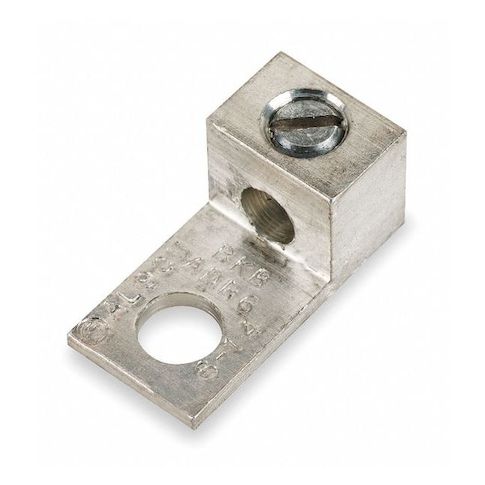

The Blackburn Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Designed for use with stranded copper wire, it features a slotted head style and a single 1/4 inch stud. With a maximum operating temperature of 194°F and a maximum voltage of 1,000V, this lug is suitable for a variety of applications, including electrical wiring and circuit connections. Its compact size and lightweight design make it easy to install, while its durable aluminum body ensures a long-lasting connection. Ideal for use in industrial, commercial, and residential settings, the Mechanical Lug is a versatile and reliable solution for electrical connections.
Top product features:
- Connects stranded copper wire up to 1/0 AWG
- Accepts aluminum and copper conductor materials
- Designed for use in temperatures up to 194 degrees F
Top product applications:
- Wire Harness Assembly
- Automotive Wiring Repair
- Electrical Panel Installation
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.25 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.44 in, Tongue Width 0.63 in, Tongue Thickness 0.19 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.70
- Package Height: 0.80
- Package Weight: 0.02
Product info last updated on February 20, 2026 5:49pm UTC
Category: Electrical Connectors
