Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 21/64 in Stud, Copper MPN:L125BB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0349937

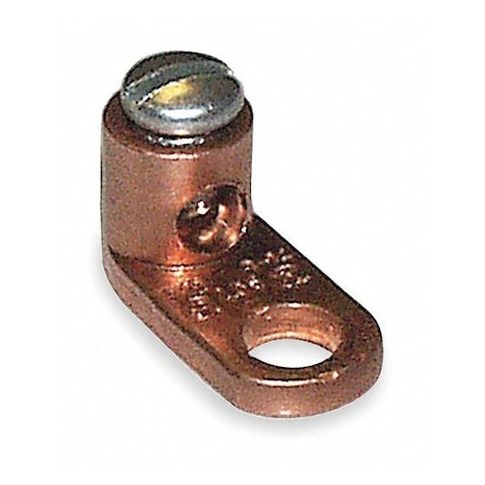

Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 21/64 in Stud, Copper
This mechanical lug is designed for secure connections in copper stranded wire applications, accommodating conductor sizes from 8 AWG to 1/0 AWG. The lug features a copper body and a 21/64 inch stud, providing a reliable and long-lasting connection. Its compact design allows for easy installation and reduced space requirements. Suitable for use in a variety of applications, including electrical panels, motor connections, and other high-voltage systems, this lug offers a maximum operating temperature of 194°F and a voltage rating of 1,000V. Its durability and performance make it an ideal choice for demanding electrical connections.
Top product features:
- Connects a single conductor up to 1/0 AWG in size.
- Accepts stranded copper wire with a minimum size of 8 AWG and a maximum size of 1/0 AWG.
- Operates at a maximum temperature of 194 degrees Fahrenheit and a maximum voltage of 1,000 volts.
Top product applications:
- Power distribution in industrial settings
- Automotive wiring harnesses
- Electrical panel connections
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 21/64 in, Head Style Socket, Number of Holes 1, Hole Diameter 0.33 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.78 in, Tongue Width 0.73 in, Tongue Thickness 0.09 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.70
- Package Height: 0.80
- Package Weight: 0.06
Product info last updated on January 23, 2026 5:06pm UTC
Category: Electrical Connectors
